The Barn — Studio Build Manual

1The goal

Turn the steel barn into a real recording studio: a place to record, mix, and master at a professional level, plus a controlled vocal/overdub room and a flexible live room. Build it in phases so it can start earning while it’s being finished.

Control room first — that’s where the money is made (mixing, mastering, the daily work).

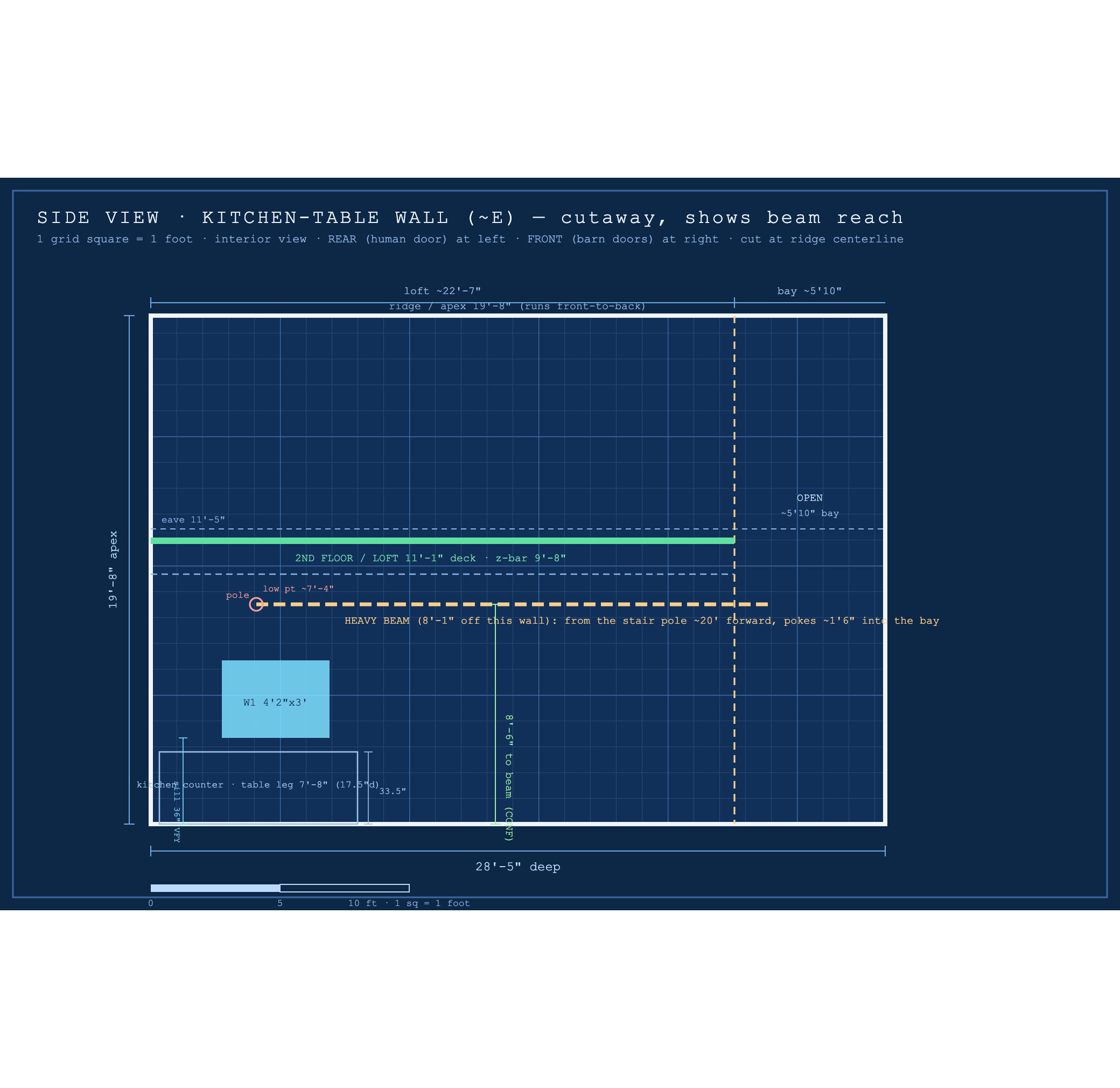

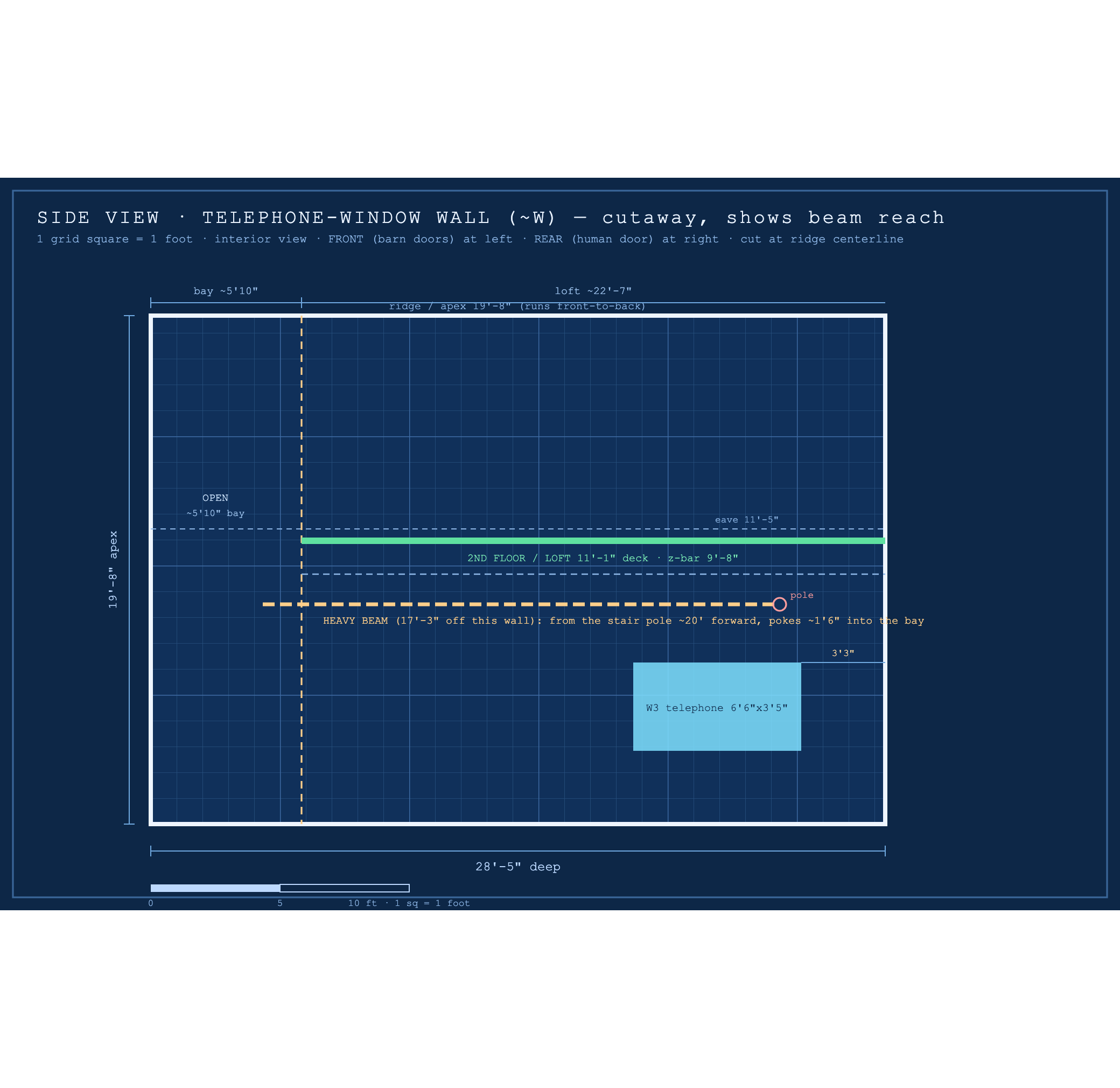

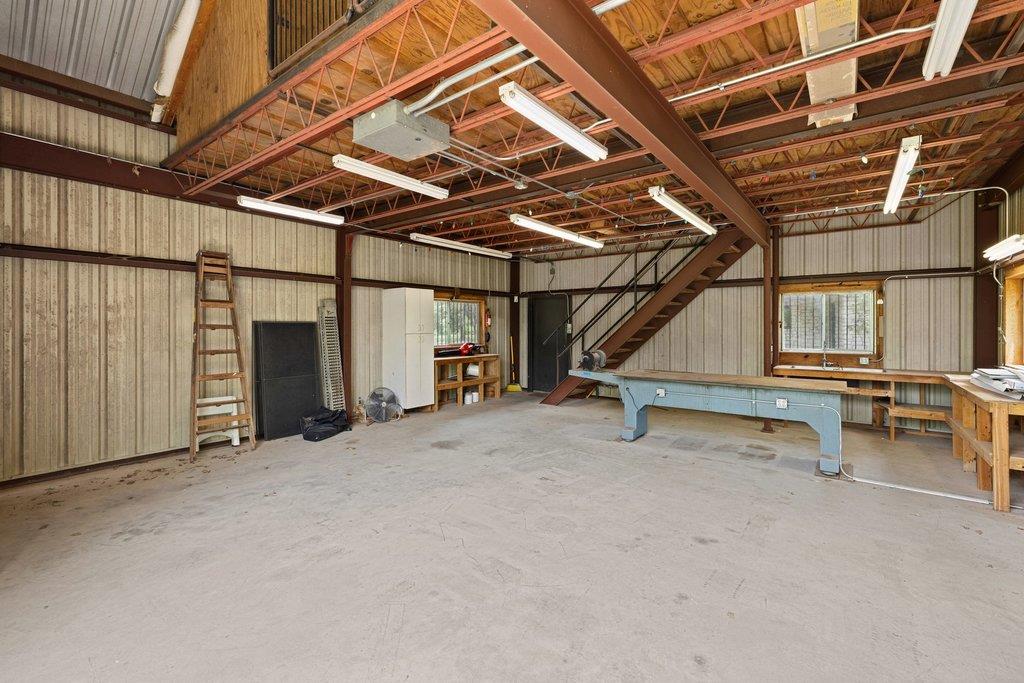

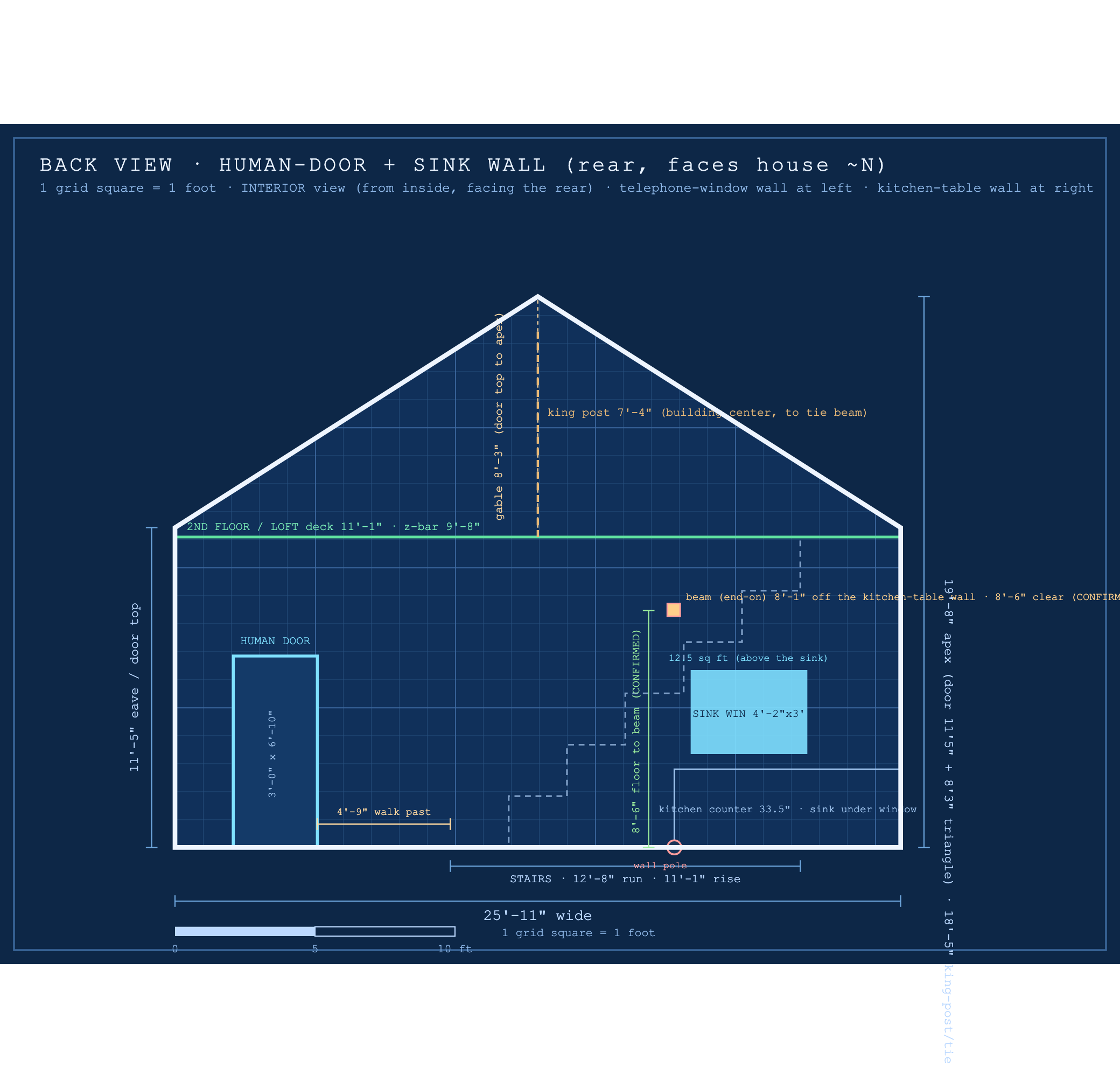

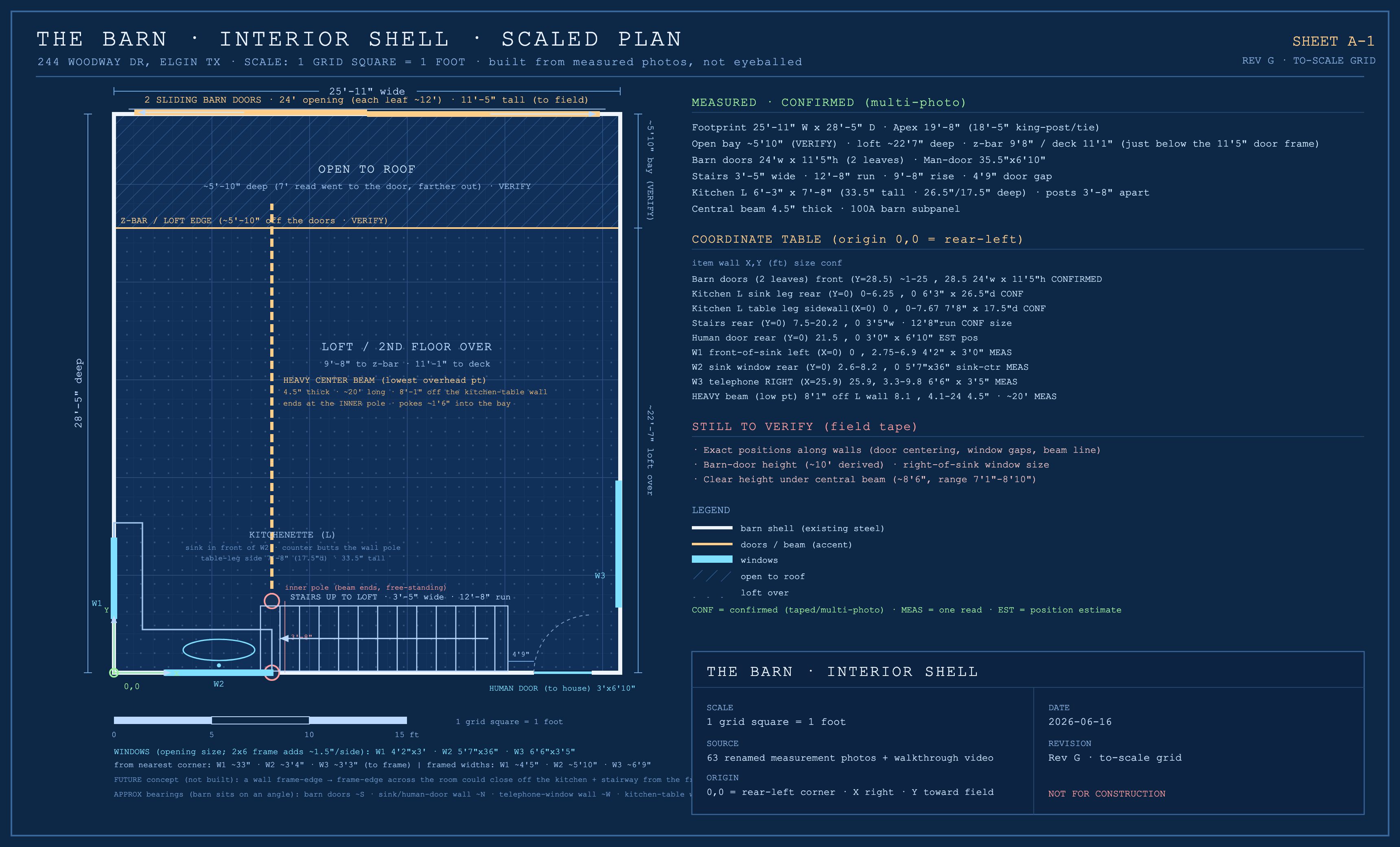

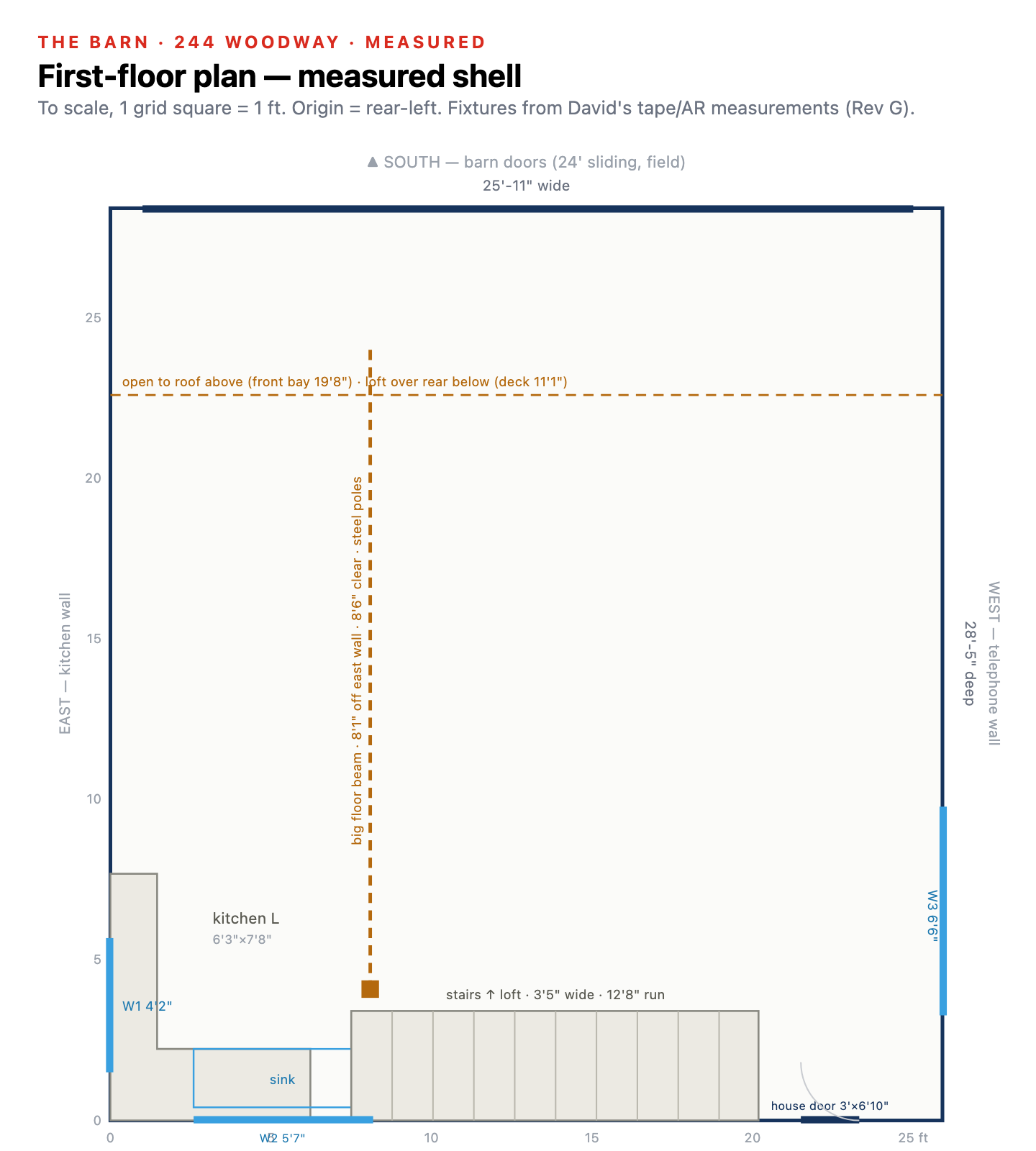

2The measured shell + blueprints

Six survey rounds locked the real envelope (blueprint Rev G). Every room has to fit inside this — not a guess. Tap any drawing to open it full-size.

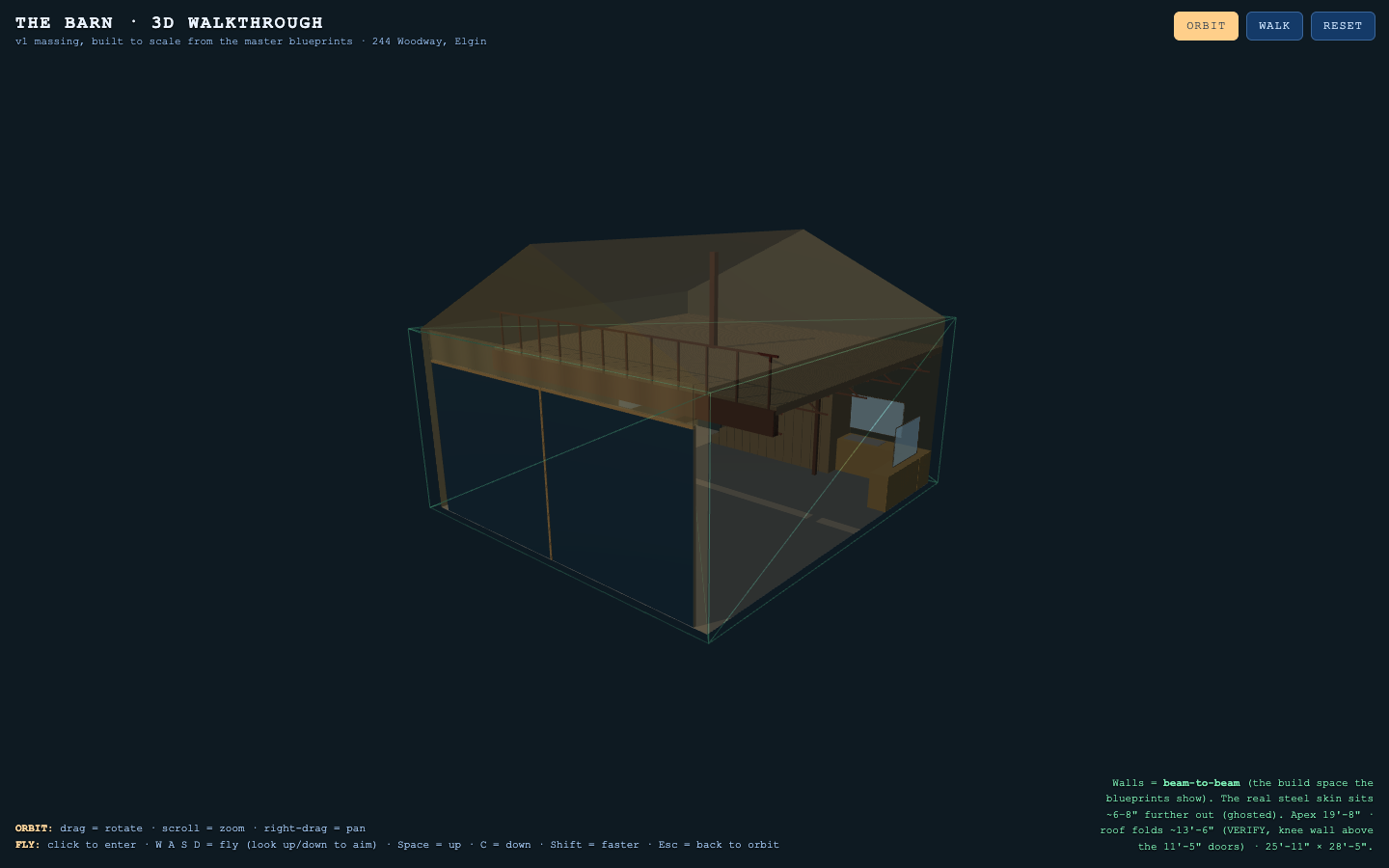

3Walk the space — 3D model

The blueprints in §2, built to scale into a 3D model you can walk through. Tap the picture to open it — drag to spin, scroll to zoom, or hit WALK to fly through the room in first person. Same measurements as the drawings, just standing up.

4The three rooms

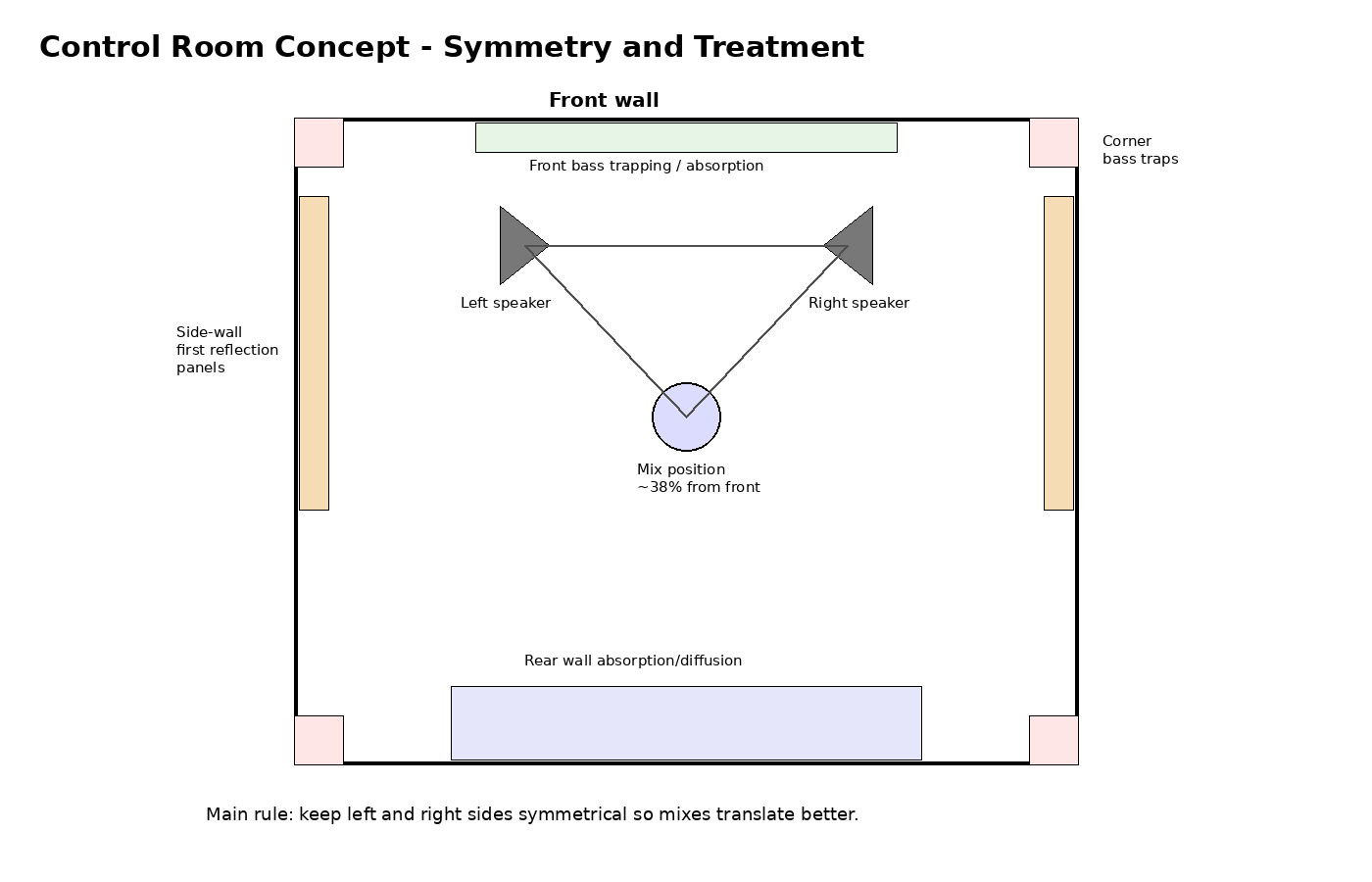

Control room — top priority

The room you mix and master in. Built first.

• Symmetrical left-to-right — non-negotiable for accurate stereo.
• Speakers on the short wall, firing down the long dimension.
• Free-standing, swappable monitors for now — no permanent soffit holes yet (keeps options open).
• Heavy, airtight, decoupled from the barn shell as much as budget allows.

Vocal booth / controlled dead room

For vocals, voiceover, acoustic overdubs, amp isolation — quiet takes while others use the live room.

• Splayed / widening shape (pentagon-ish), NOT a square closet.
• Singer faces the short window wall; big treated wall behind the singer.
• Strong door seals, no direct air holes, quiet supply + return air.
• Thick absorption + some adjustable treatment so it isn’t dead-flat.

Live room

For full-band tracking, drums, amps, room sound.

• Keep the most useful open volume and the most ceiling height.
• Keep some life in the room — don’t kill it.
• Movable panels / gobos to change the sound per session.

5The plan taking shape — 1st floor (rough)

This is where David's head is at right now for the first floor. It's a rough direction, not final — exact placement waits on real measurements + the 3D CAD model, and it all gets run by Dad before anything is built.

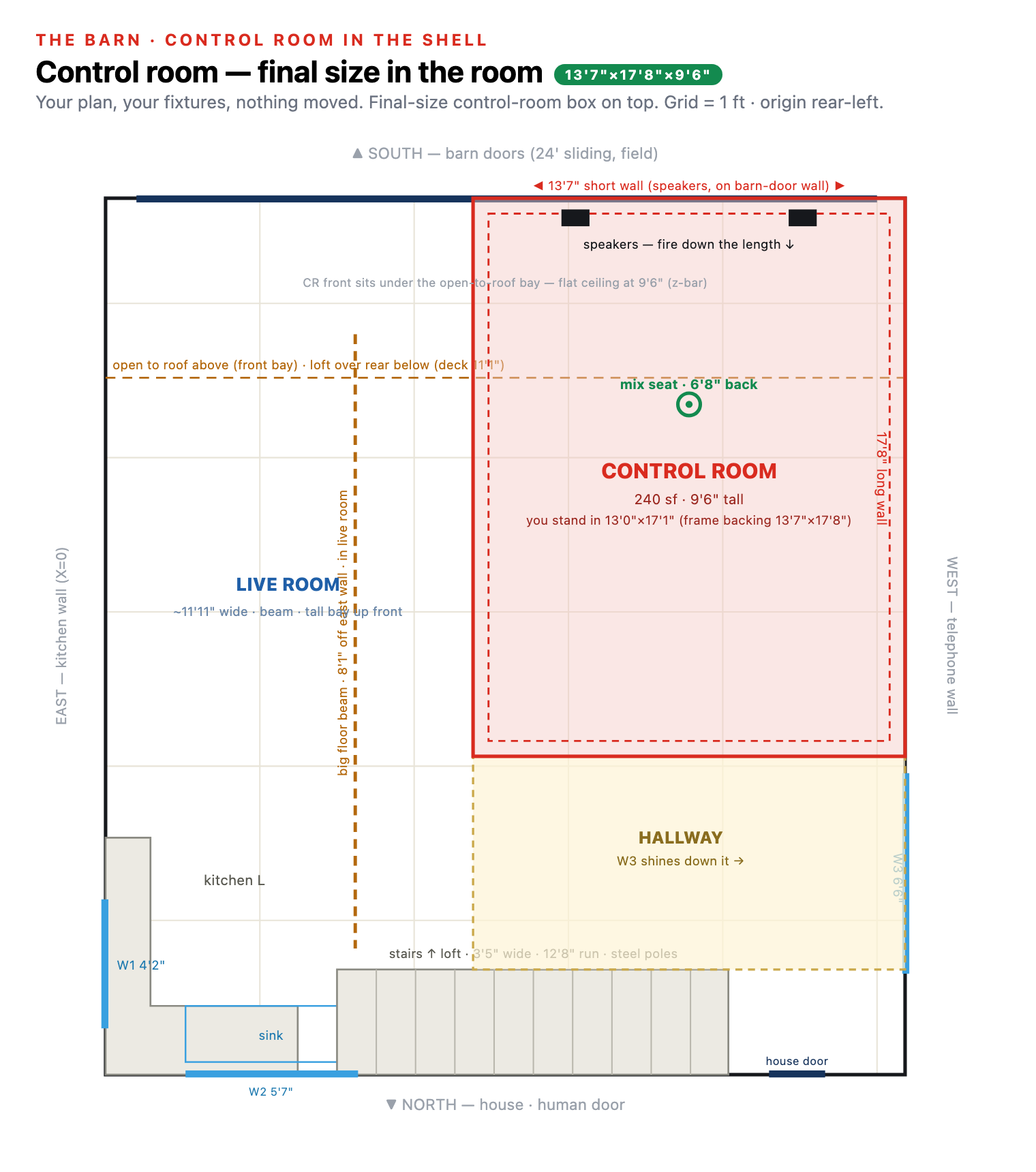

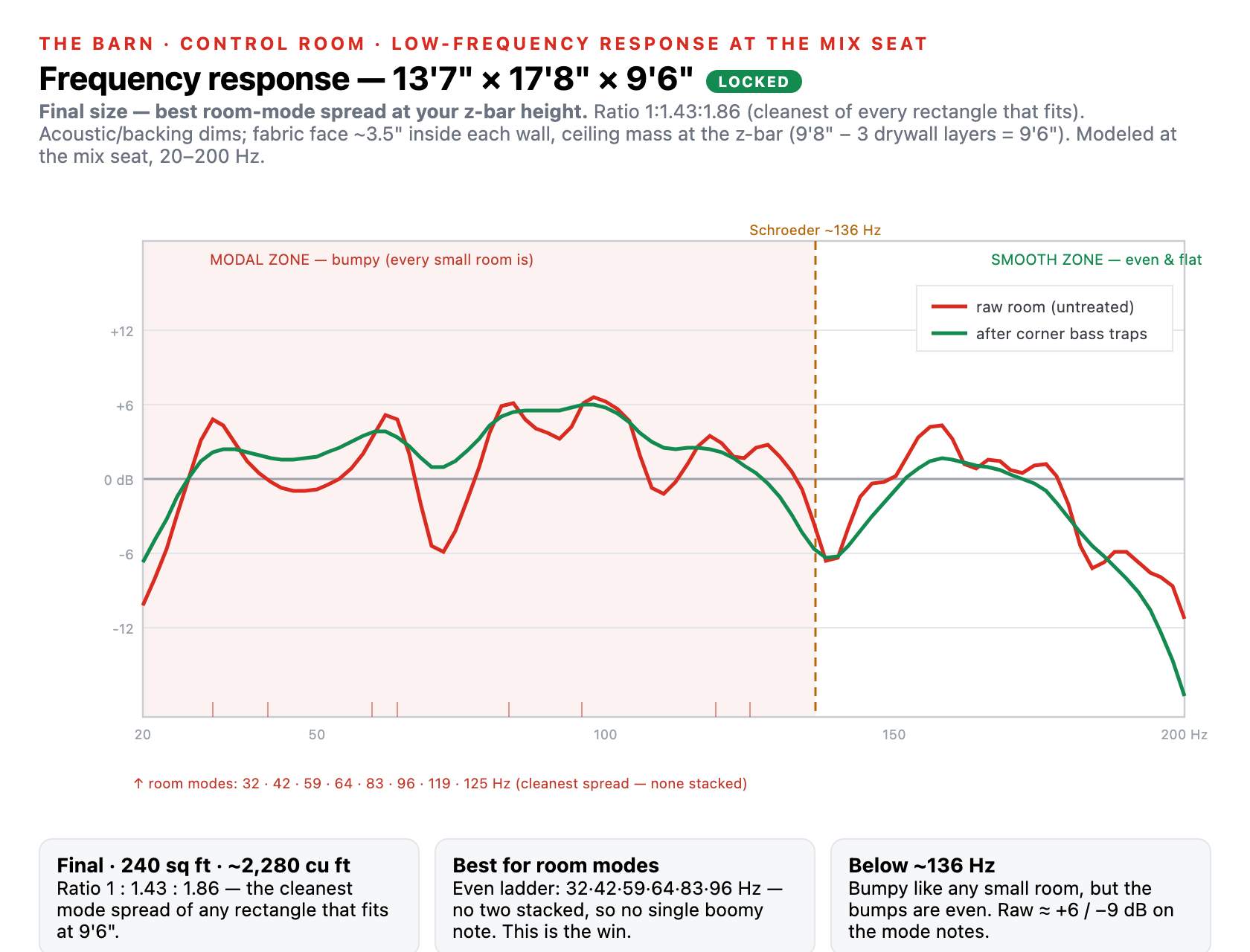

6Control room — sized + measured

The control room is sized like a speaker box: pick the proportions so the room's resonances spread out evenly instead of stacking and booming. Of every rectangle that fits under the z-bar ceiling, this one has the cleanest room-mode spread — the flattest, most trustworthy low end. Built on the west side, under the loft, starting past the telephone window (W3) so the window lights the hallway.

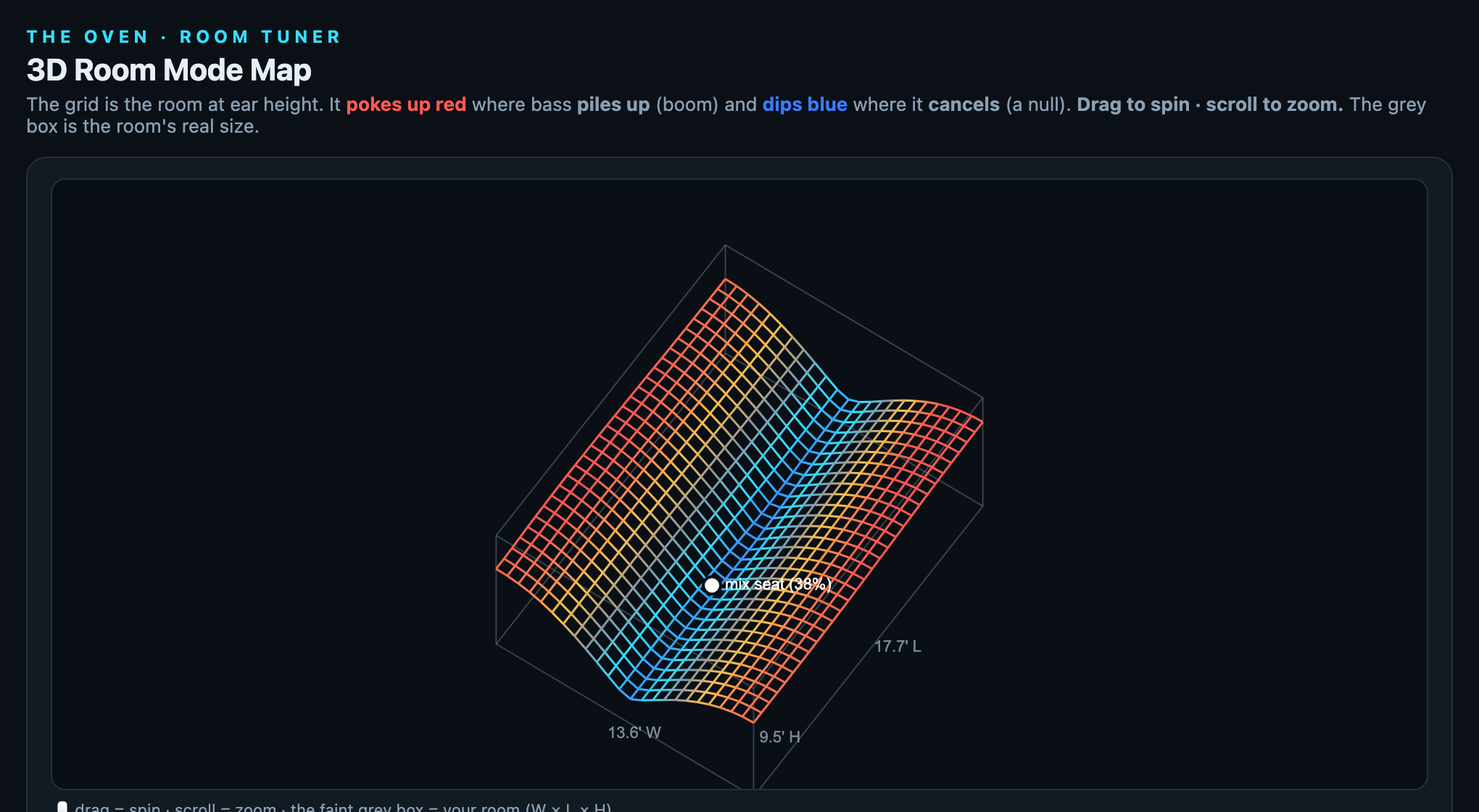

7See the room modes (interactive)

A live 3D map of how bass behaves in the control room. Drag to spin, scroll to zoom, and slide the frequency — the grid pokes up red where bass piles up (boom) and dips blue where it cancels (a dead spot). The 2D analyzer below it tracks the frequency you're on. This is the same room-mode math the control room and the sub placement were designed around.

8Target dimensions

9The one rule that matters most

Isolation / soundproofing keeps outside noise out and studio noise in. It comes from mass, airtight sealing, decoupling, damping, heavy doors/windows, and quiet HVAC paths. Built into the structure — you can’t add it later without tearing walls open.

Acoustic treatment makes a finished room sound good inside: bass traps, broadband absorption, ceiling clouds, diffusion, gobos, rugs. Goes in after construction and is tunable.

Do not rely on insulation alone for soundproofing. Foam on the wall does nothing for isolation.

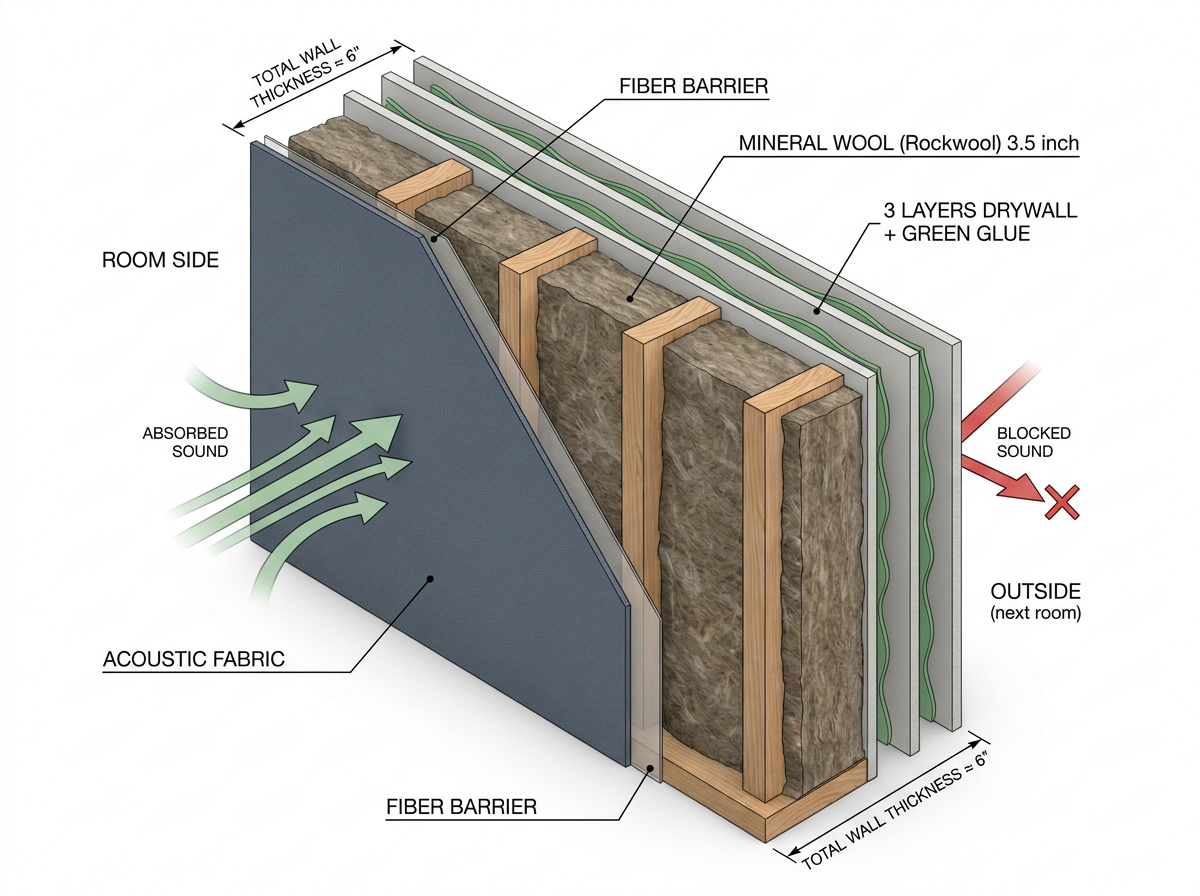

The five things that actually buy isolation

1. Mass — heavy, dense walls.
2. Decoupling — inner room not hard-connected to the barn shell.
3. Air gaps — separation between leaves.
4. Sealing — airtight everywhere; sound leaks like water.
5. Damping — Green Glue between layers to kill resonance.

Weak points that ruin good walls: doors, windows, outlets, HVAC ducts, unsealed cracks. Spend the money there.

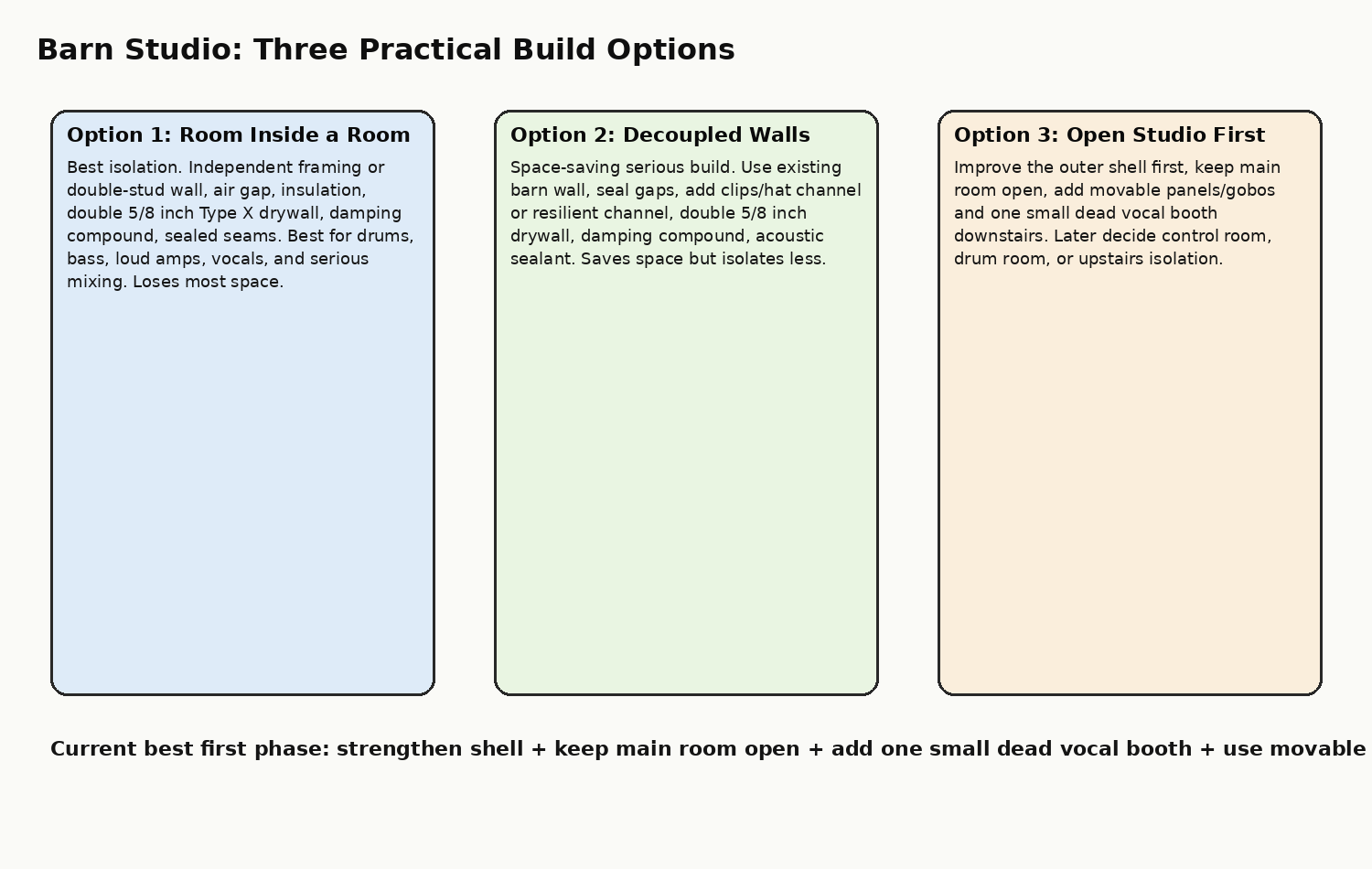

10Three build options

Pick per room and per budget. You can mix — e.g. a room-in-room control room with a lighter live room.

Option 1 — Full room inside a room (best isolation)

True room-within-a-room or double-stud. Pros: best isolation — drums, bass, loud amps, vocals, serious mixing. Cons: highest cost, loses the most floor space + height.

Option 2 — Space-saving decoupled walls (serious but tighter)

Staggered studs, isolation clips + hat channel, double drywall + Green Glue. Pros: strong isolation, saves space. Cons: not as good as fully separated leaves; clips/channel must be done right.

Option 3 — Open studio first (phased / earn while you build)

Treat the open barn well, start recording, build hard rooms over time. Pros: cheapest start, fastest to first session. Cons: little isolation early; loud sources bleed.

11Ideas to steal (build these in)

Tips pulled from a tour of 150+ recording studios (STUDIO TIME). The thread through all of them: everything on, everything ready, everything in arm's reach. The gear that's already patched and levels-set is the gear you actually use. The song is the master, not the rack. Several of these have to be framed in before the walls close — those are flagged.

Control room

• Hardware-insert hybrid mixing — outboard gear patched as permanent hardware inserts, zero latency, but still mixing in the DAW so automation saves with the session.
• Tactile control surface (SSL UF8/UF1 or similar) — mix with fingers and feel, jump between writing / tracking / mixing in one day.
• Guitar / amp wall on a switcher — multiple amps on one switcher + one power conditioner; one guitar cable + pedalboard, one button flips amps through the monitors (via a load box). Second output feeds a miked cab in another room.
• Reamp box wired to the pedalboard — pipe DI guitars from a mix back out through a real cab and re-mic them.
• Synth switcher — one stereo DI feeds many synths; flip between them using only two DAW inputs. Same trick as the amp wall: many sources, few channels.
• Proper speaker stands, decoupled + positioned — heavy, sand-filled, decoupled (e.g. Sound Anchors). Makes monitors "sound like different speakers." Don't cheap out here.
• A loud combo amp left out for fun + a studio fridge with cold drinks for clients — energy and hospitality are part of the room.

Drum + tracking rooms

• Drummer's "side rig" — a second monitor + Bluetooth mouse/keyboard at the kit, linked to the main computer over an IP/USB-over-ethernet extender. Drummer punches in, solos, and tweaks their own headphone mix without leaving the kit.
• Drum closet — a stash of snares/drums that each sound different, organized and ready to grab. Big sound = big drum, tight = the punchy one.
• The pipe grid for overheads + room mics + camera angles (above).

Mics

• The "everything mic" — keep a mic next to the desk, on and ready, always. "On and ready" matters more than which mic. Catch ideas and vocals the second they hit.
• Mic closet / locker — each mic on a quick clip, ready to grab-pop-plug. Because it's easy, you'll actually A/B mics instead of settling.

Acoustics — his hard-won lesson

• Removable panels on hooks — 2'×4' absorption, a little deeper (depth matters), some with scatter diffusers; move them per session.
• Control room: first-reflection points + ceiling clouds first — that's the treatment that actually counts in the mix room.
• Rugs — cheap and effective.
• Skills > gear > acoustics — the biggest difference is knowing how to record and getting the right part. Save money on treatment, spend it on getting better.

The room as a place

• Make it special — framed photos of real moments, tasteful art, records on the wall. Pull from rooms that inspire you.
• A project / focus board — a board of active artists + projects, by the door or the kitchen pass-through, to keep an easily-distracted brain anchored on what matters that day.

12Build order — the master sequence

The order that actually works. Three rules drive it: do the dirty and overhead work first (clean, steel prep, the dark spray) so it can't wreck a finished floor, everything that lives inside a wall or ceiling goes in BEFORE the wall closes, and you finish the floor and treat the room LAST. The outdoor accessories run in parallel and never block the studio.

1. Phase 0. Design + decide (on paper). Lock the floor plan and decide the attic use now: a chamber / amp room needs its cable + speaker lines run during rough-in, a lounge does not. Plan every system on paper: power loads + circuits, HVAC sizing + duct paths, cable routing (audio snake paths room-to-room), the wood-stove flue, plumbing, lighting. Measure twice. (Shell already mapped, Rev G.)
2. Phase 1. Empty, inspect, weathertight. Pull everything out. Inspect before spending a dollar on finishes: roof leaks, rust at beam connections, slab moisture, loose conduit / open boxes, window leaks, rotted wood, pests. Fix leaks and seal the envelope, the barn must be bone dry (a leak ruins a stained slab and any finished work). Photograph everything first for the before/after record.
3. Phase 2. The dirty work: clean + prep the steel, top-down. Dry-clean high to low (ceiling deck, trusses, beams, conduit, fixtures, walls, ledges, then the floor). Then prep the metal: degrease first (SSPC-SP1, solvent or TSP-substitute, rinse, dry), then remove loose rust (SSPC-SP2, wire brush / sanding). Never the other way, mechanical cleaning over oily steel drives the contamination in. Spot-prime bare and rusty steel with a rust-inhibitive primer.
4. Phase 3. Spray-foam the metal shell (the condensation barrier). Onto the cleaned, dry, prepped steel: closed-cell spray foam (2–3") on the underside of the metal roof deck + the wall bays. This is the air + vapor + thermal barrier that stops the cold steel skin sweating against conditioned interior air, the #1 failure in a hot-humid Central-TX metal building (condensation → rust, mold, rot). It also seals every corrugation gap and tames the metal drumming. This is the SHELL barrier, not the room insulation: the decoupled room-in-a-room cavities get open mineral wool (Rockwool) later (Phase 9), never closed-cell, closed-cell in the cavity shrinks the decoupled air gap and kills isolation. Avoid the hot-humid double-vapor-barrier trap: never sandwich Rockwool between two vapor-tight layers. Foam the steel before the dark paint, then paint only the visible bays. Exposed foam needs a thermal / ignition barrier (drywall or an intumescent coating), code + welding safety.
5. Phase 4. Rough floor prep (the dusty step). On the bare open slab: scrape blobs and adhesive, degrease oil spots, repair cracks, grind / profile where needed, vacuum every speck. Saw-cut any floor conduit chases or core any slab penetrations now, before the stain. Run your stain test samples. This is the dustiest job, so it goes before any finish, while there is nothing nice to ruin.
6. Phase 5. Spray the shell dark + finish the wood. Mask the floor, windows, and outlets. Spray the ceiling, beams, and conduit, then the wall panels (and any visible foam), a warm dark matte (soft iron-black / charcoal-brown / blackened bronze, never cold gloss black). Metal primer / DTM paint. Then stain and darken the wood trim, benches, cabinets, and slats. This messy overhead spray goes before the floor stain so nothing oversprays a fresh floor.
7. Phase 6. The floor: stain + base seal. Overhead is done, so the hero goes down on the open slab. Final deep clean, test porosity, apply the layered patina (black/brown base, rust movement, turquoise / oxidized-copper accents), neutralize and rinse if acid-stained, then a base seal. Protect it with ram board for the rest of the build. The final topcoat waits for Phase 10. Full how-to: the floor section.
8. Phase 7. Rough-in (last chance before walls close). Everything that lives in a wall or ceiling, over the protected floor: power (subpanel, circuits, every run), HVAC + ventilation (unit, silent ducts, supply / return), cable routing (audio conduit control↔live↔booth↔attic), the wood-stove flue penetration, plumbing (sink + future hot-tub line). If the attic is a chamber / amp room, run its lines now. Putty-pad the boxes.
9. Phase 8. Frame the rooms + cut the openings. Frame the control room first (decoupled, on the protected floor), then the booth, then define the live room, sill gasket under all framing. Cut and frame the windows + the angled control-room glass (non-parallel so it never reflects into the mix). If the control room gets a floated floor (see Floor isolation), build it now, isolation pucks + floated deck, before the walls close over it.
10. Phase 9. Close + seal. Insulate the cavities with open mineral wool (Rockwool), never closed-cell (closed-cell shrinks the decoupled air gap and hurts isolation). Hang double drywall + Green Glue (mass outboard), seal every seam, edge, outlet, and penetration. Nothing rattles.
11. Phase 10. Final finishes + the floor topcoat (the beautiful coat goes on LAST). Final power + the track lighting, HVAC registers, the angled glass, the doors. Then, after all the dusty work is over: a final deep clean of the floor + the final satin / polyaspartic topcoat (anti-slip near the doors). Satin, not high-gloss, gloss shows every scratch and footprint.
12. Phase 11. Audio in + TEST. Install the console, monitors, gear, and all wiring, get every audio + power line live. Measure the room (Smaart / REW): first the isolation, then the mix-position response.
13. Phase 12. Sound treatment (tuned, not guessed). Bass traps, first-reflection panels, clouds, diffusion, movable gobos, tuned to the measurement, then re-measure and adjust. Treat what you measured.
14. Phase 13. Install + style (cured floor only). Once the floor has cured: furniture pads under everything, then lighting, rugs, sofas, amps, signs, the guitars and gear. No dragging on the new floor.
15. Phase 14. Accessories (parallel, never blocking). Hot tub (slab + its own heater), Airstream booth, dome, the outdoor / site work runs alongside the studio or after it is earning. See Accessories.

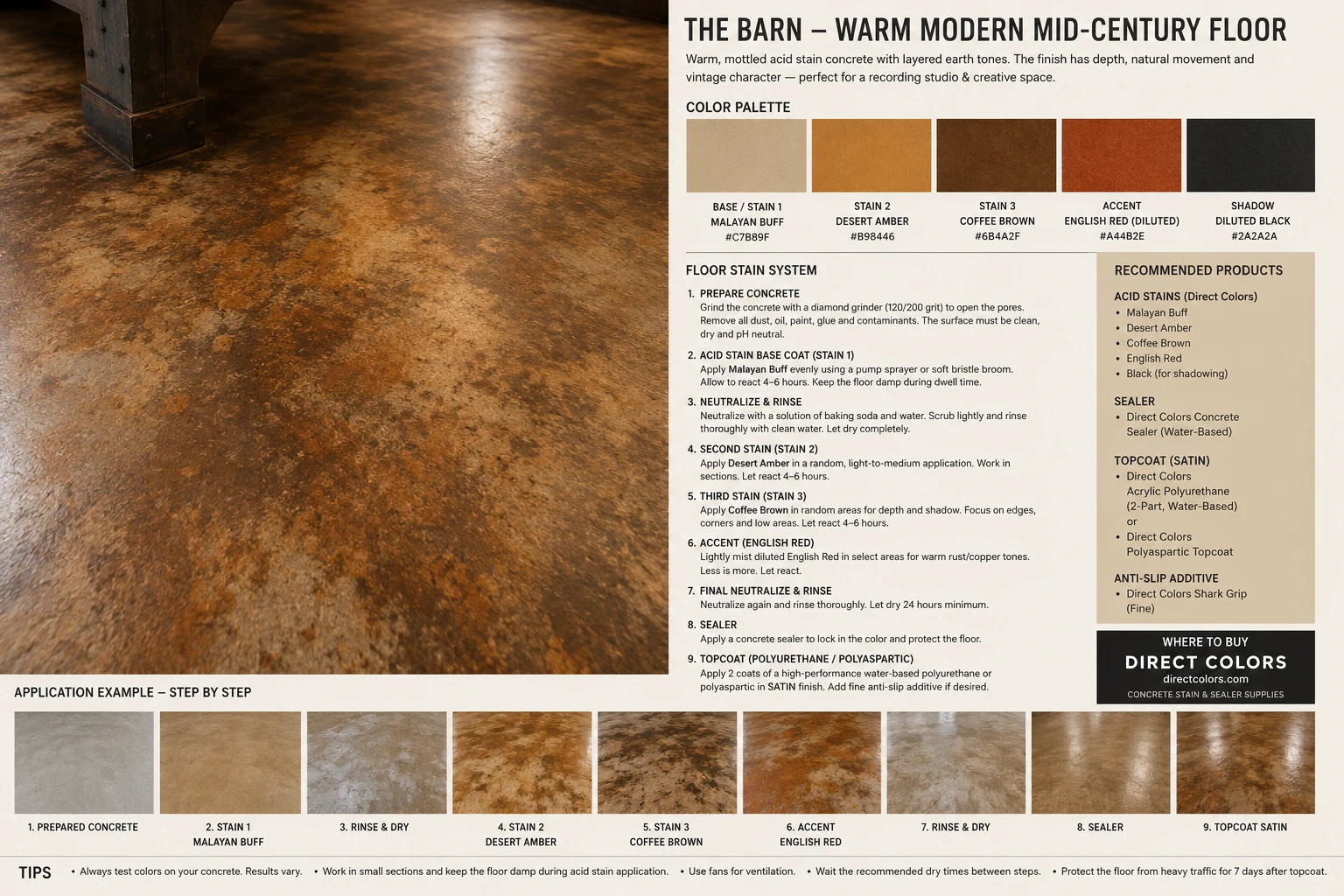

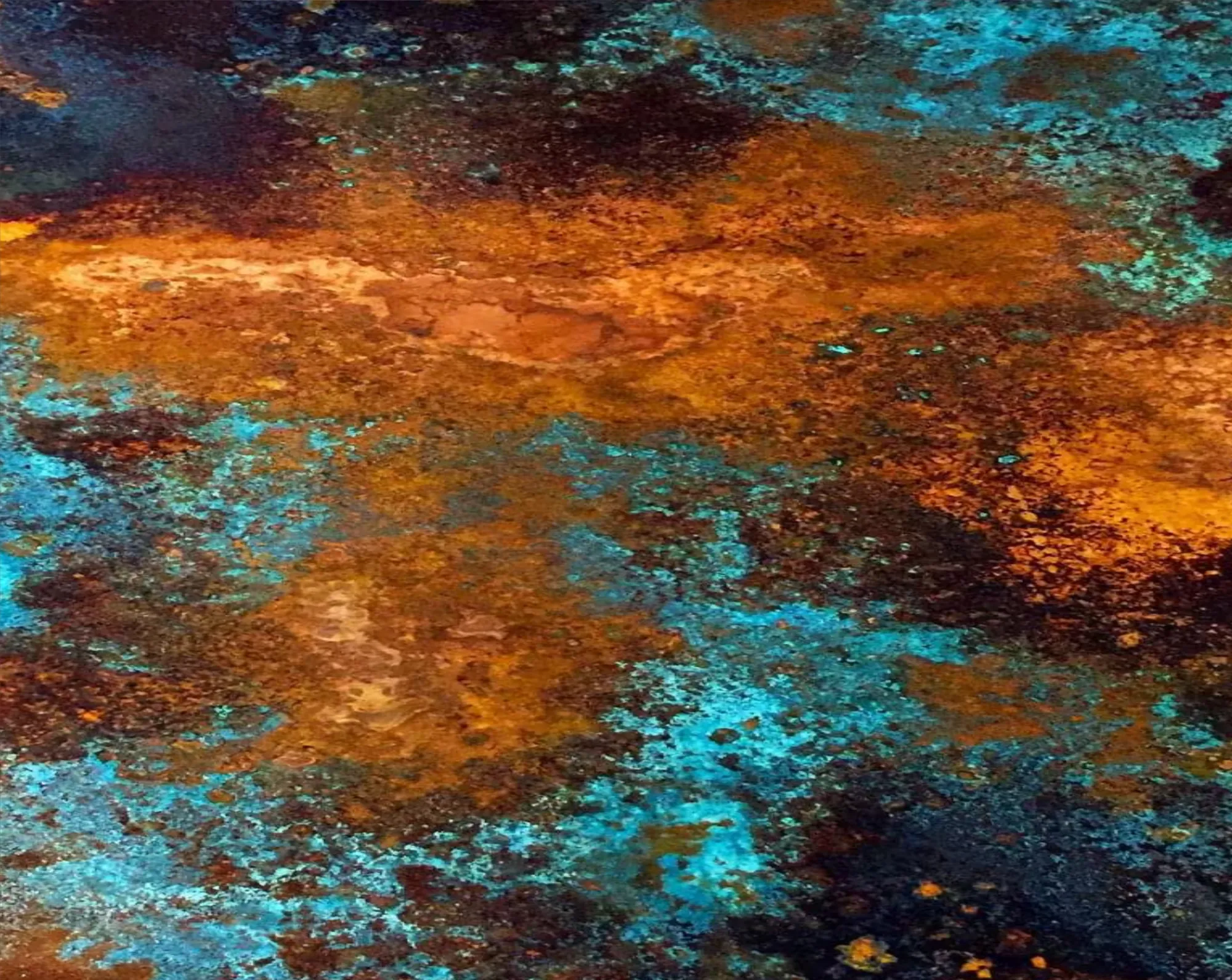

13The patina floor: prep early, finish last

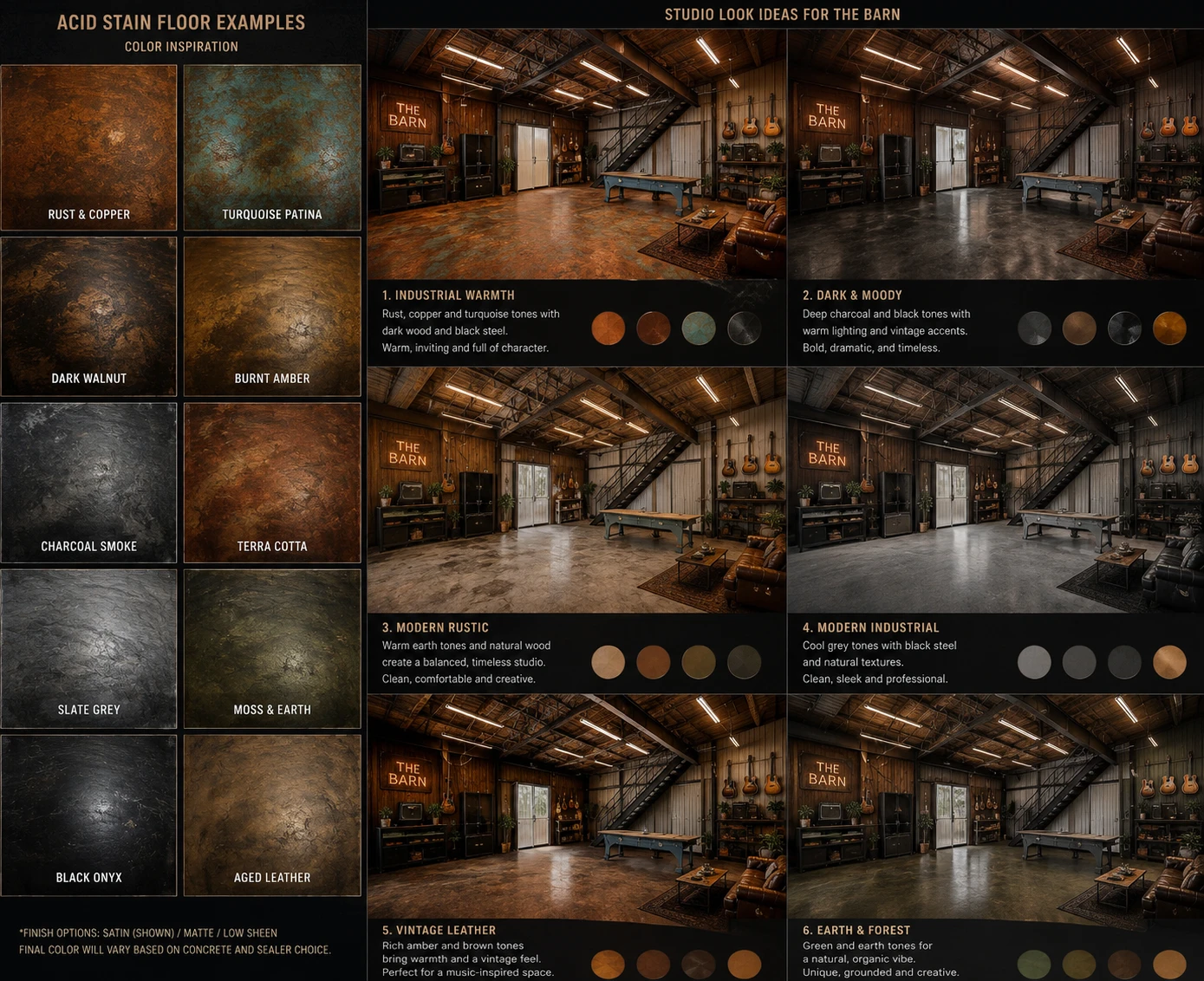

The acid-stained copper / turquoise / rust patina floor is the hero of the whole studio — it holds the identity and everything builds out from it. It goes in before any framing, walls, or gear: you need the full slab open and clean, and you can't grind or stain around walls. Get the order right and you build on a finished floor.

The sequence

1. Clear + clean. Empty the barn. Sweep, scrape, and strip all debris, oil, old paint, glue, and red chalk (permanent). The slab must be bare.
2. Power-wash — ⚠ KILL THE POWER FIRST. Before any water touches the floor, shut off the barn's electrical at the subpanel. Water + the GE panel / 220 V circuits is lethal. Then pressure-wash the slab to lift embedded grime and oil. Dry fully (overnight+, longer in humidity).
3. Moisture test (the #1 cause of failure). Tape a 2'×2' clear plastic sheet flat to the slab for 24 h. Condensation or a dark patch under it = moisture → use a breathable / penetrating sealer or a moisture-mitigation primer. The slab sits ~1 ft proud (drier), but an old pour may have no vapor barrier — test anyway.
4. Grind / profile (non-negotiable on an old slab). Diamond-grind to an open CSP profile so stain penetrates and sealer grips. NEVER acid-etch — it leaves salts that wreck the bond. Scrape control lines, then vacuum every speck of dust.
5. Open the pores. SurfPrep at 3:1 water, broom in figure-8s, rinse, let dry.
6. Test patch — always. In a corner or a spare slab chunk, run the full process including sealer — you won't see the true color until it's neutralized, washed, and sealed. Dial the recipe here. Acid stain is permanent and only goes darker.
7. Stain the patina. Two routes for the vivid copper/turquoise:
   • Acid stain (the flake-proof base): warm brown/amber base → drop turquoise/aqua in while wet (wet-on-wet drifts) → a touch of black/ebony in the lows for aged-metal shadow → optional copper highlight. Pump-spray, agitate with a broom, then mist water so colors flow into organic blooms — never brush lines. React 4 h min (overnight = darker).
   • For the ELECTRIC vivid look (the reference photo): acid stain alone can't hit it — layer reactive metallic (Modern Masters Metal Effects copper + iron paint, then a green/blue patina + rust activator → real verdigris + rust) or a metallic epoxy (mica copper/teal/rust, alcohol spritz + torch for molten cells) over the stained base. A dark underlayer first makes turquoise pop; salt / solvent spritz makes crystalline blooms; sponge and dab, never brush.
8. Neutralize + rinse + DRY. 8 oz ammonia : 5 gal water, broom it, then rinse/mop repeatedly until the cloth comes up clean — leftover residue is the #1 peel layer. Dry fully, overnight+.
9. Seal (the depth + protection). Thin cross-rolled coats. Satin/matte breathable in the tracking rooms (less acoustic reflection + thinner film = less peel risk); high-gloss (epoxy flood coat or polyaspartic, 2+ coats) in the lounge / control room for the wet-glass 3D depth. Polyaspartic = toughest + UV-stable. Skip thick high-gloss urethane — first thing to peel.

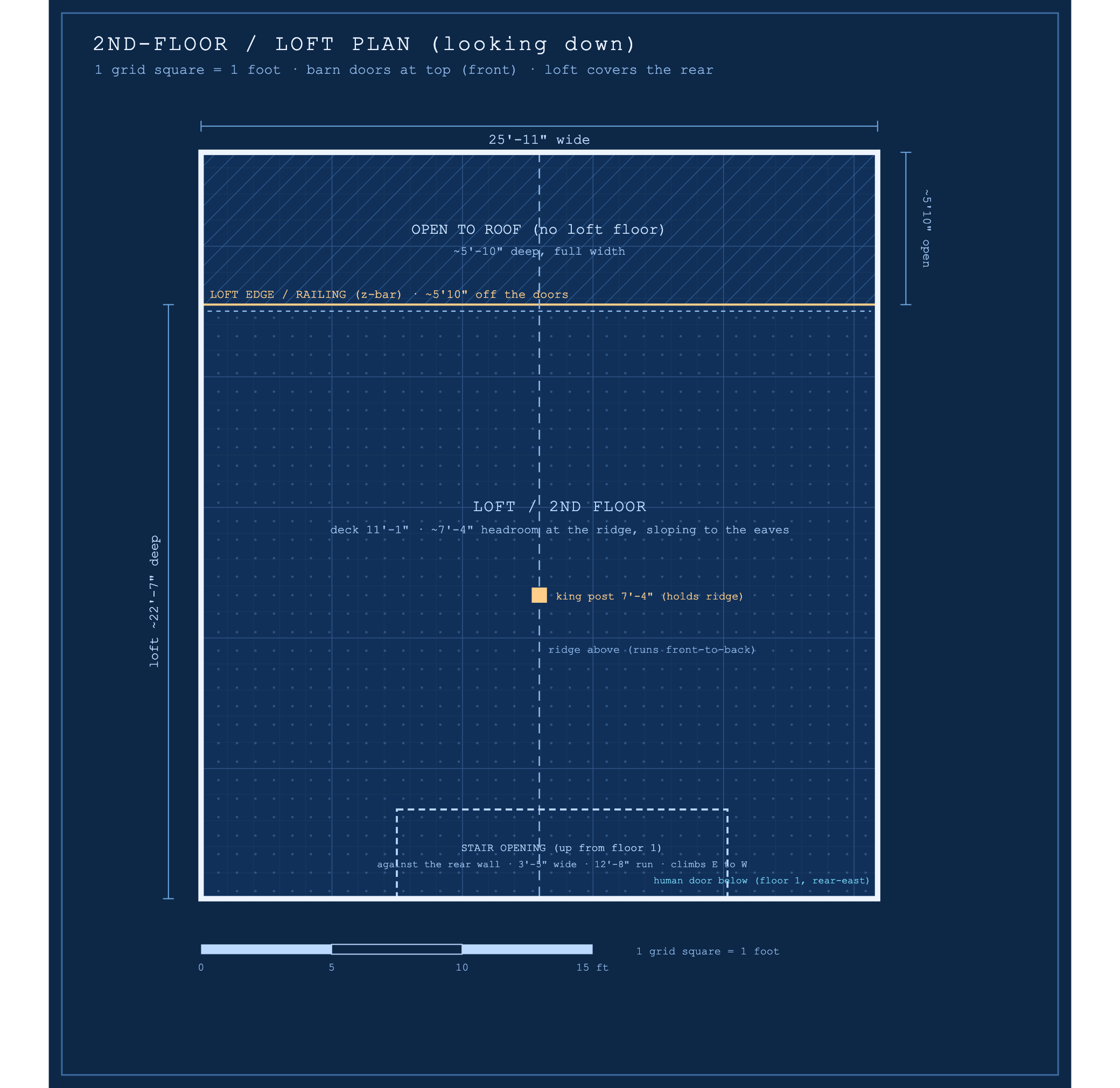

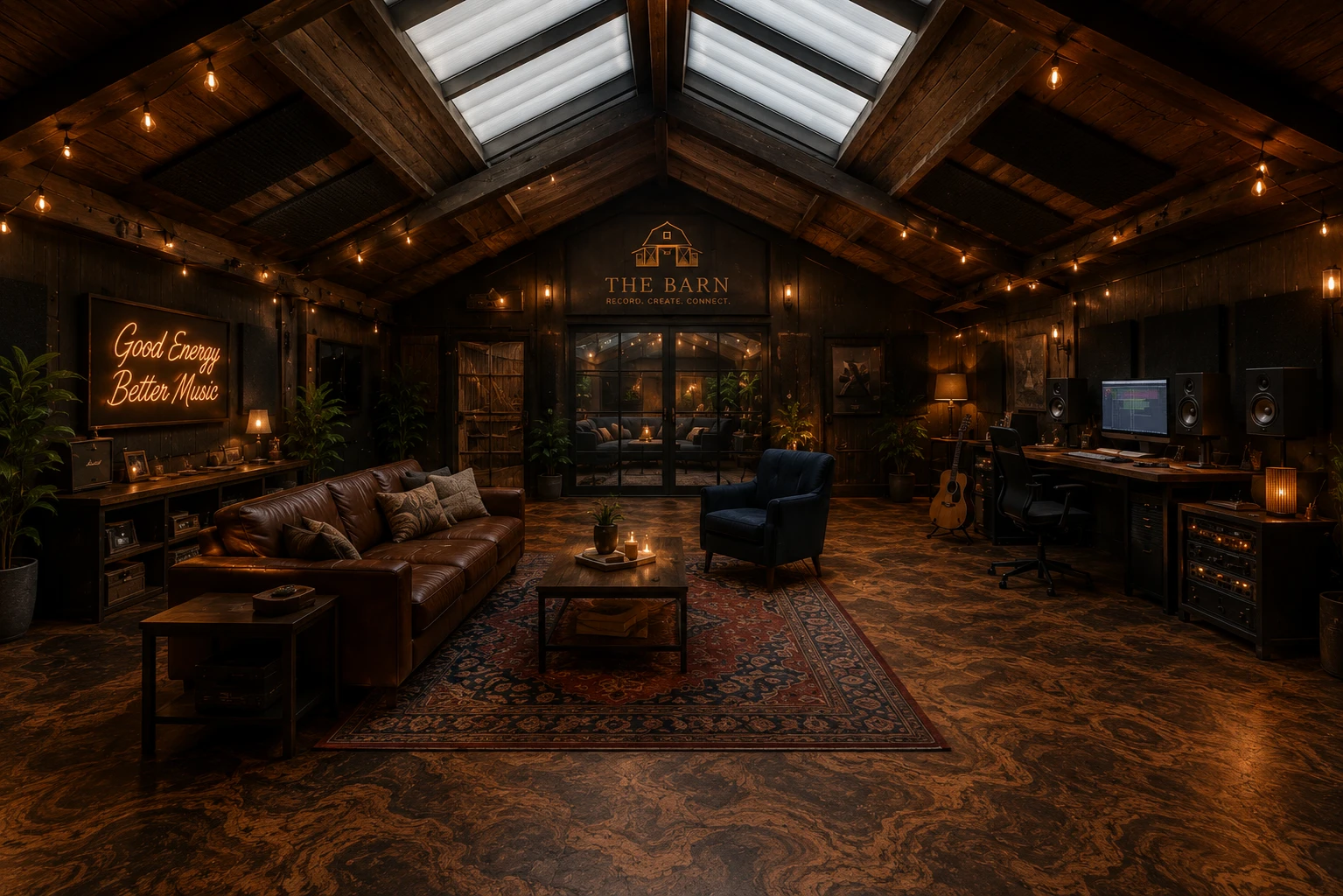

Floor 2: the loft (cork, not cement)

The loft floor is a different problem from the slab. It is plywood on joists that flexes, and it is also the ceiling of the rooms below. Two rules follow: don't put a brittle finish on a moving floor, and remember the real soundproofing is the assembly, not the finish.

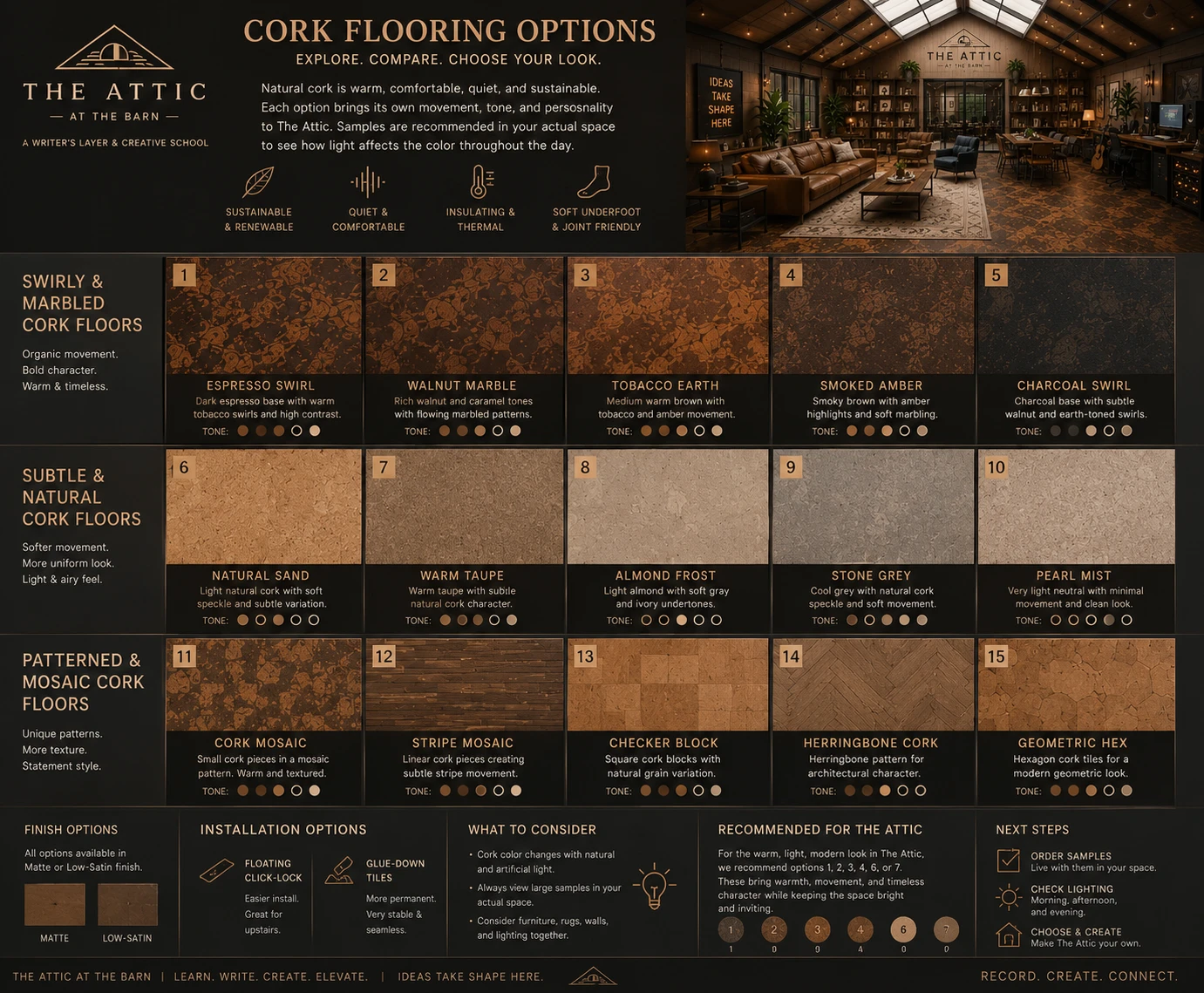

Decision: dark swirly cork with a matte commercial finish, upstairs. Cement, microcement, and skim coats are brittle: on a flexing wood deck (people walking, gear rolling, the building vibrating) they crack, chip, or separate unless the structure is engineered and prepped perfectly. Cork flexes with the deck instead of fighting it, so it will not crack. It is also warm, quiet, and soft underfoot (right for a crash / lounge loft), and it naturally damps footfall, since it is the same stuff sold as acoustic underlayment.

Which finish, ranked for no-crack / no-chip

Floating vs glue-down cork

• Floating / click cork: easier upstairs, less mess, repairable, has an attached underlayment (more impact isolation), needs an expansion gap. Best for the soundproofing priority and a DIY install.
• Glue-down cork: the seamless art-floor look (best for a marbled swirly pattern), feels solid and permanent, but transmits impact more directly unless glued over a resilient underlayment, and it needs a very smooth substrate and careful adhesive.
• The lean: floating cork for isolation plus easy install and repair, unless you find the perfect marbled pattern and want the permanent art-floor look, then glue-down over a cork / rubber acoustic underlayment for the best of both.

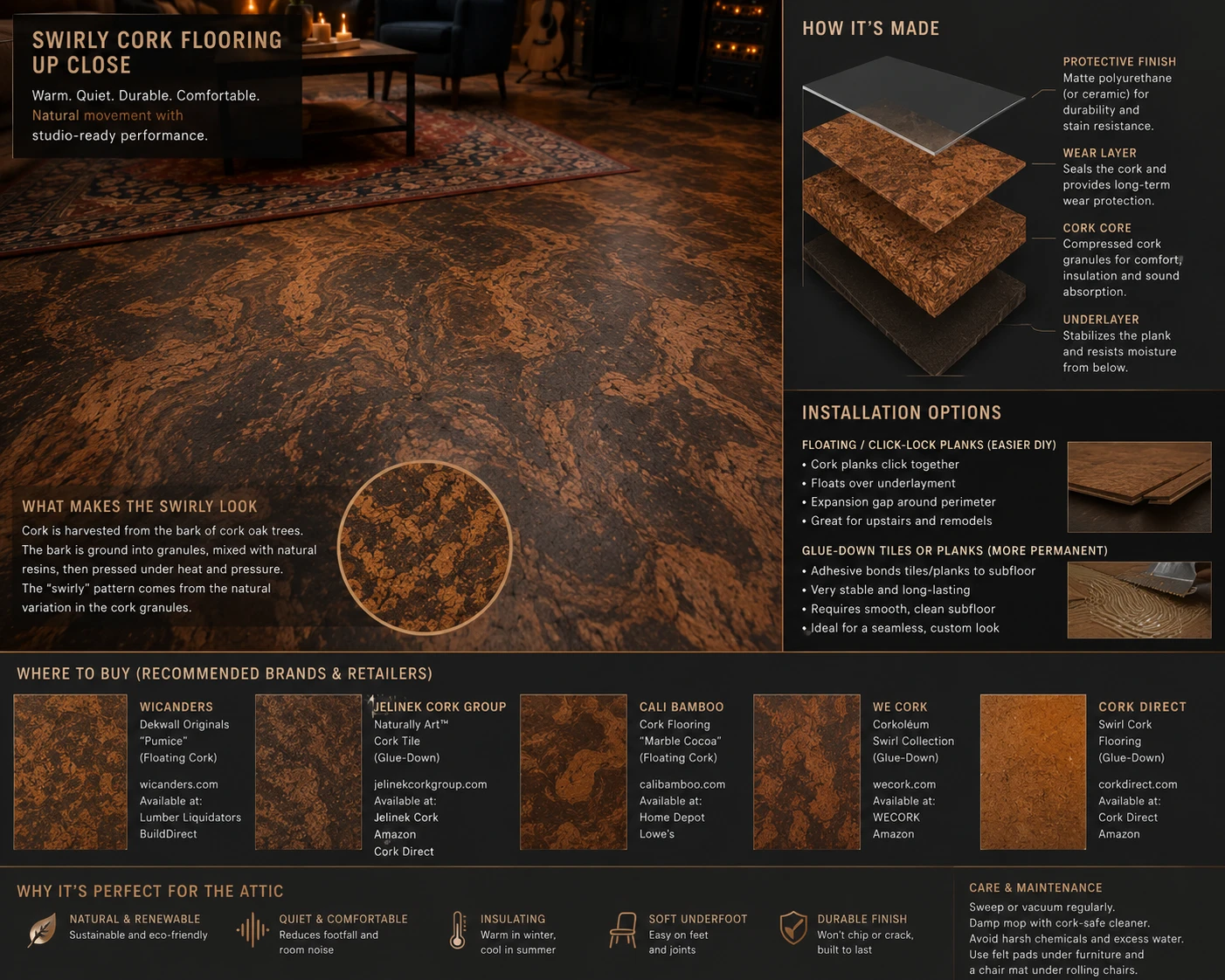

How it's made + the swirly look

Cork is the bark of the cork oak, harvested without killing the tree (it regrows), then ground into granules, mixed with binders, and pressed under heat and pressure into tiles or planks. The swirly / marbled look comes from larger organic granules with color variation, not the tiny speckled bulletin-board cork. A finished plank is four layers: a matte polyurethane (or ceramic) protective finish, a wear layer that seals the cork, the compressed cork core (comfort + insulation + sound), and an underlayer that stabilizes it and resists moisture from below.

Where to buy (local Austin first)

Color target: charcoal / espresso base, tobacco-tan and smoked-amber movement, warm brown-black variation. Finish: matte or low-satin commercial polyurethane or a factory wear layer. Not glossy, not yellow, not basic bulletin-board tan.

14Power / electrical

The barn already has the anchor: a GE panel + 100 A "Barn Subpanel" feed, plus the welder / air-comp / mill circuits. Plan the studio's power on paper in Phase 0 and rough it in (Phase 7) before any wall closes.

• Dedicated clean audio circuits — keep the console, racks, and monitors on their own circuits, separate from lighting / HVAC / fridge, so you don't get hum or sag when the AC kicks on.
• One technical / star ground — every audio device references the same ground point. This is what kills ground-loop buzz.
• Size the loads with headroom — sum the gear draw + AC + lighting, size the circuits up, and label every breaker.
• Generous outlets + conduit — plenty at the desk, racks, live-room walls, and the loft/attic, on conduit/raceway so you can pull more later.
• Isolate noisy gear — the welder, compressor, and mill stay on their own circuits, never shared with audio.
• ⚠ Licensed electrician + Bastrop County permit. Water + 220 V = licensed only.

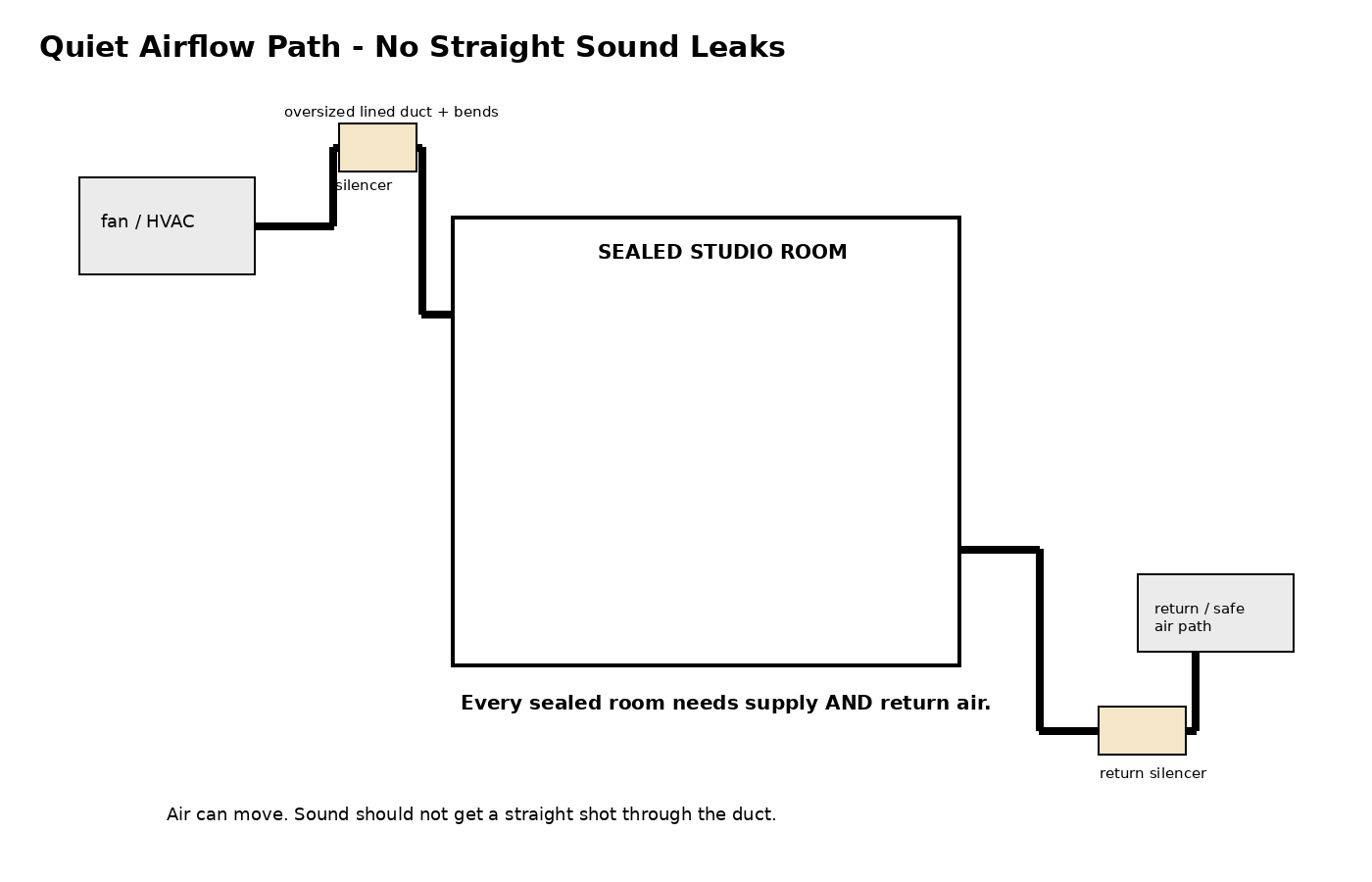

15HVAC + airflow (the silent killer)

A sealed room with no air gets hot and useless fast — people, gear, lights, computers, amps all dump heat. But cutting a simple hole between rooms destroys your isolation. Solve both.

Design rules

• Low-velocity air (slow air is quiet air); oversized ducts when possible.
• Long duct paths with bends, not straight noise tunnels.
• Lined duct / silencer (muffler) boxes.
• Separate supply AND return for each occupied room; returns that don’t leak sound between rooms.
• Mechanical equipment (condenser, air handler) away from mics + the control room.
• Plan it all before framing closes.

16Cable routing

The studio's nervous system. Plan it in Phase 0 and pull it during rough-in (Phase 7) — once the walls close, you can't add a run without opening them back up.

• Room-to-room paths — conduit / raceway between control ↔ live ↔ booth ↔ attic for the analog snake plus any network/digital. Oversize the conduit so you can pull more later.
• Separate audio from power — run audio away from power, crossing at 90° rather than bundled parallel, to keep induced hum out.
• Recessed wall panels — XLR / TRS plates at the desk, live-room walls, and the booth so you patch cleanly instead of snaking cables under doors.
• The snake — a multicore / stage box from the live room to the control-room patchbay; spec the channel count for your biggest session + headroom.
• Attic sends — if the attic becomes a reverb chamber / amp room, run its speaker-out + mic-return lines now.
• Label both ends of every cable. Future-you will thank you.

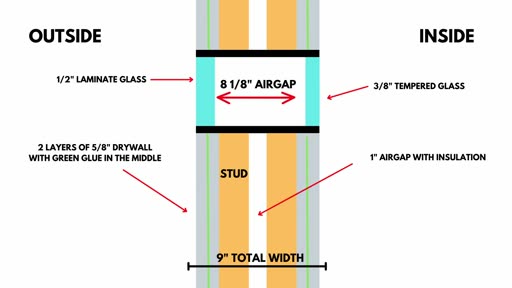

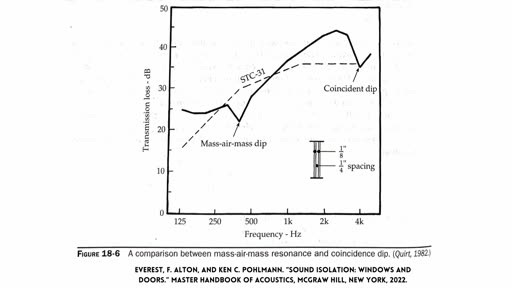

17The studio glass

Window between control room and vocal booth.

• Visible glass: 48"W × 30"H, centered on the 7' booth front wall.
• Height: bottom ~42–44" AFF, top ~72–74" AFF.
• NOT a basic residential double-pane. Use two separate laminated panes in isolated, sealed frames.

Control room side: 1/4" laminated glass, near vertical
Booth side:        3/8" or 1/2" laminated glass, tilted 5° from vertical

For 30"-tall glass, 5° ≈ a 2 5/8" top-to-bottom offset. The booth-side pane tilts so it reflects sound down/away from the mic, not straight back. Use gasket tape, neoprene/EPDM setting blocks, removable stops, acoustical sealant. Panes must not touch the frame hard.

Sliding glass doors — the live-room divider (a whole class on glass)

The live room gets closed off from the kitchen + stairs with a 6" wall + a double sliding glass door (soft side facing the drums). Soundproofing a sliding glass door comes down to the big three: mass, airtight, air gap — plus picking the right glass. Float glass (standard window glass) is acoustically poor; use tempered or laminate, and ideally two different thicknesses (e.g. 3/8" + 1/2", one tempered + one laminate). Below are the three graphics from the study, each explained.

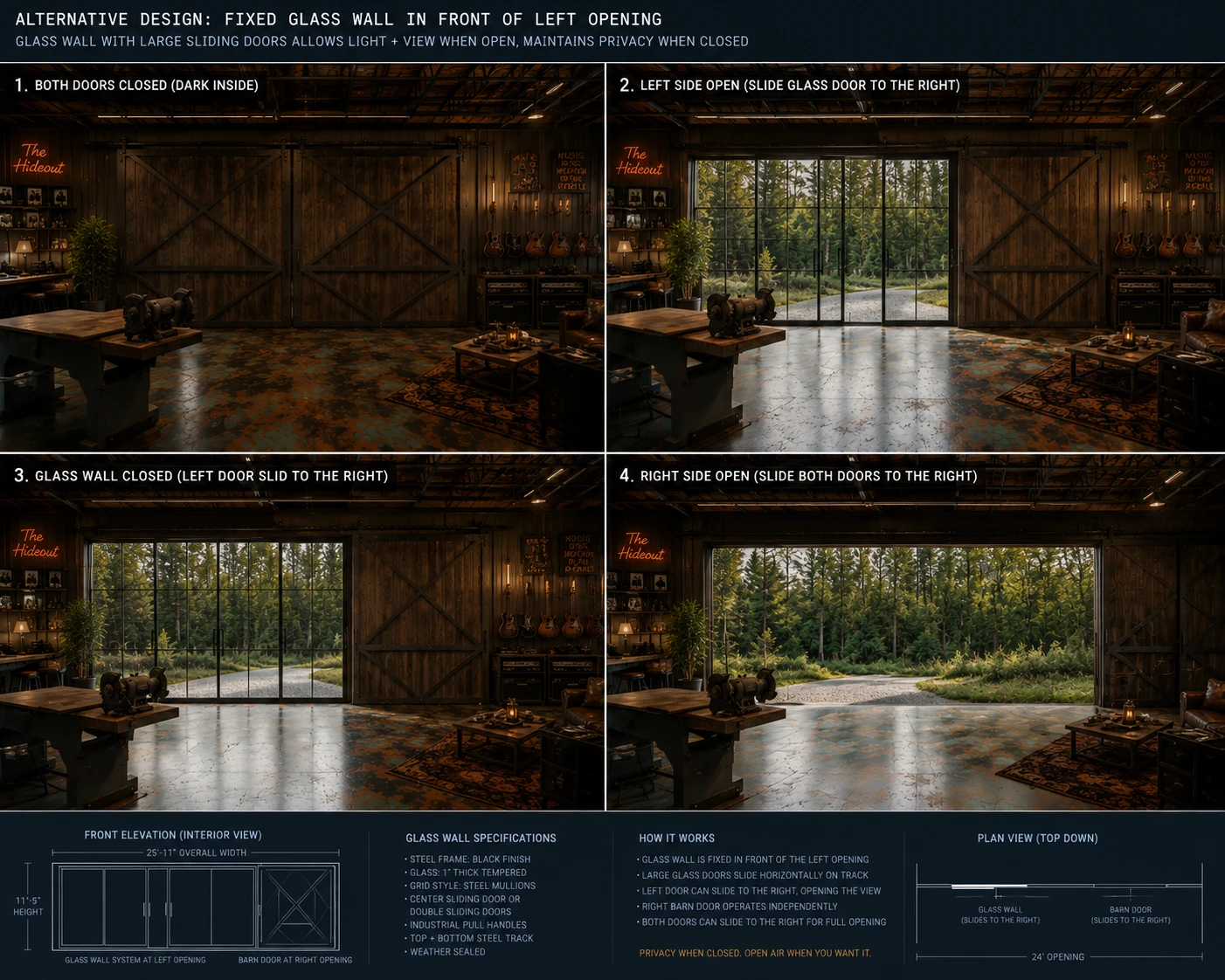

The front glass wall (a wall within a wall)

This is the move for the front: build a glass wall in front of the left barn-door opening, a wall within a wall. Make that glass wall out of glass doors, not a fixed pane, so you can slide it open into large doors, or leave it shut as a big window, whatever the day calls for. The wood barn doors slide over the whole thing for blackout and privacy. So you get three looks from one wall: a big window onto the forest, full glass doors thrown open to the air, or a sealed dark room. Full build + glazing detail in the Barn doors section.

Barn-door glass + how it mounts to the bare steel frame

The barn door (and the live-room divider) is a moving, steel-framed door, so the glass has to survive the slam, block sound, and not buzz. The pick from the research: laminated safety glass, ideally tempered-then-laminated. The PVB interlayer damps vibration the way Green Glue does in a wall, so it does not "ring"; it holds together if it ever cracks; and it kills the coincidence dip. Run two different thicknesses across the leaves (3/8" + 1/2"), break each leaf into smaller divided lites (stiffer, quieter, cheaper to replace than one giant pane), and hang it on soft-close hardware rated for the heavy glass so it never slams. Plain tempered alone is strong but it rings; float glass is out (shards + poor sound).

Glass + glazing by location (the quick table)

Every transparent surface in the build: what goes there and why. The golden rule under all of it: no float glass anywhere acoustic. Use laminated (or tempered-then-laminated), and where two panes face each other, run two different thicknesses so their weak spots land on different frequencies.

★Polycarbonate glazing

Polycarbonate is the barn's daylight + glass-substitute material: a low-cost, lightweight, virtually unbreakable alternative to glass for the lounge, the daylight bays, and the big door system. Three families, each with a job.

The one rule: mass where you record, light where you hang

• Recording / control areas: heavier wall assemblies, insulation, acoustic panels, rugs, sealed doors, controlled glass. Polycarbonate stays off this envelope.
• Lounge / daylight areas: polycarbonate used strategically for light, vibe, weight savings, and that warm creative feel.

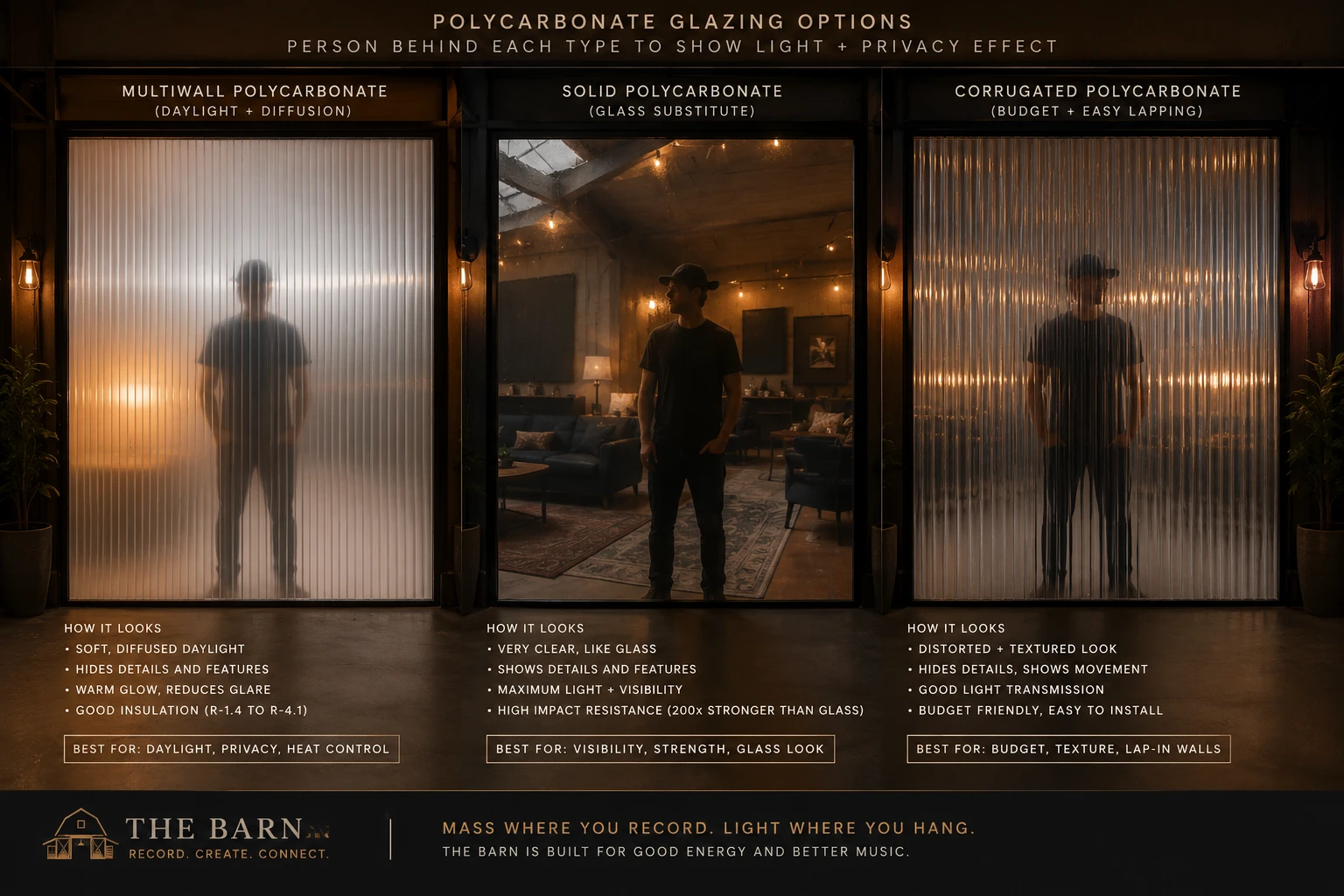

The three families

• Multiwall (fluted, air gaps) = the daylight panel. Diffused opal glow, insulated, lightweight. For skylights and daylight wall bays. Best for daylight, privacy, heat control.
• Solid sheet = the glass substitute. Clear looks like glass (~88–90% light), virtually unbreakable. Comes in clear / bronze / opal / obscure. The hard-coated grade (Lexan MARGARD) resists scratching and UV. Best for visibility, strength, the glass look.
• Corrugated (the "wavy" SUNTUF) = the cheap lap-in roof panel. Single-wall, thin, ~$2.50/sq ft. Only where it laps into corrugated metal watertight and is not a feature.

The numbers that matter

Meets Florida + Texas hurricane impact codes, which matters for big exterior panels and the barn doors (wind / storm). Premium daylight pick = Lexan Thermoclear Plus 25mm 5-wall X opal: R-3.7, 49% light, 0.70 lb/sq ft, Class A fire, 2-sided UV, 10-year warranty.

Sound: the honest version

Thick multiwall gives a real but moderate 15–23 dB reduction (the air gaps act like mini double-glazing; it is used in highway sound barriers). That is not studio isolation (a studio wall is ~50–60 dB, an observation window ~45–55). So polycarbonate is a sound barrier, never the critical isolation line. The real sound boundary stays a mass wall or the laminated-glass live-room divider (§17). Mass where you record, light where you hang.

Where each material goes

• Opal multiwall = daylight panels: the loft skylight strip (east roof bay; the barn's ~7.6:12 pitch is well over the 10% minimum) and a north-wall daylight bay (north = soft light, low heat; never a big translucent area on the west or south). Glows amber at night, a brand moment.
• Clear solid PC (MARGARD) = tough see-through where glass is overkill or risky: door vision panels, exterior windows, the dome.
• Laminated glass = the control-room / live-room observation window (mass = sound).
• Keep all polycarbonate off the tracking-room isolation envelope.

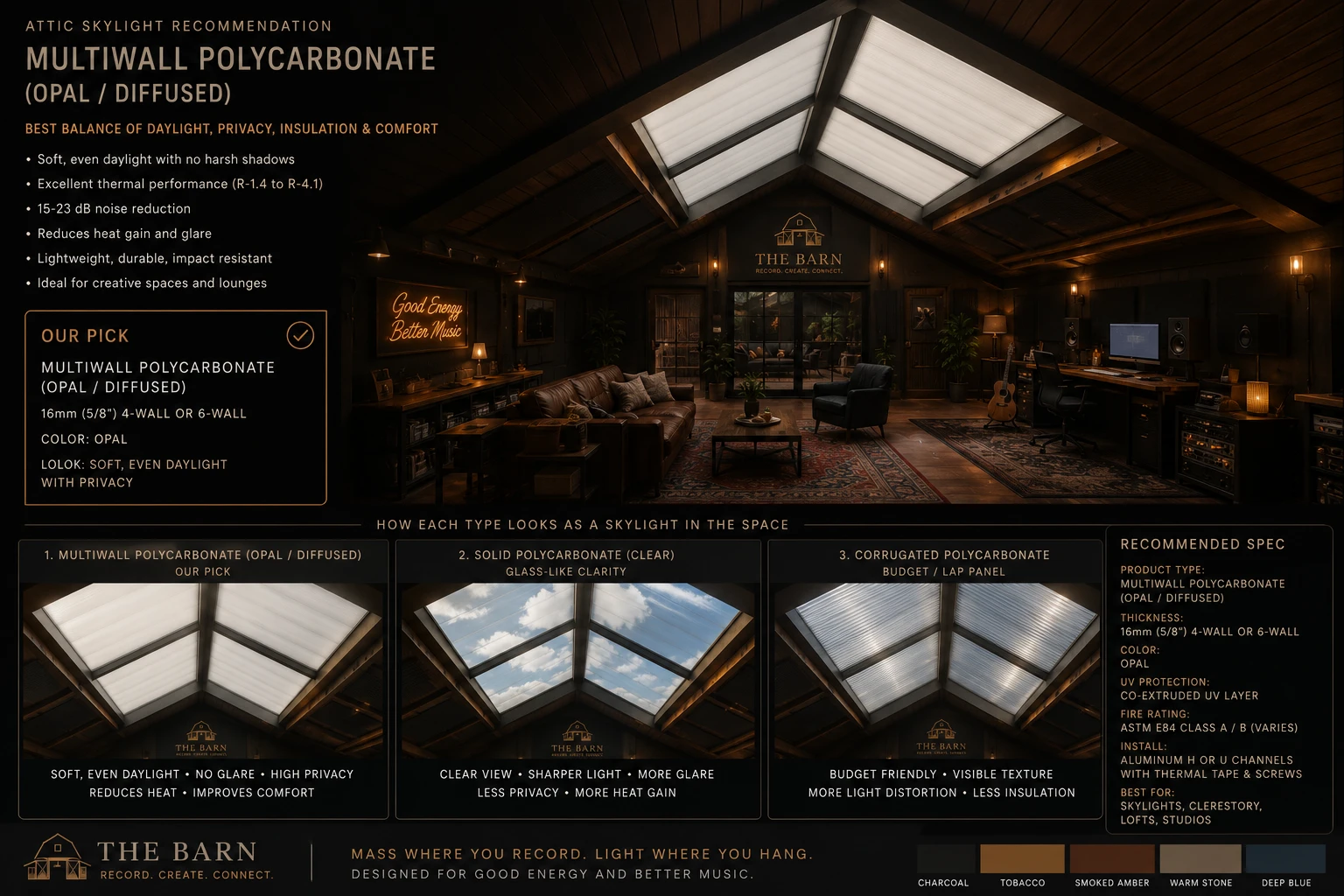

The attic skylight (locked spec)

Barn doors: the polycarbonate direction

This is the polycarbonate-leaf direction for the moving leaves. The next section (Barn doors) shows the wood-over-fixed-glass version. They are two options: David's call which to build, or how to combine them.

How to mount it

• Solid sheet (MARGARD) mounts like glass: captured in a frame channel on all four edges, floating on EPDM setting blocks and gaskets, trapped by a bolt-on removable stop. Never screw through the face. Size the pocket generous (~1/8" per foot of panel) with deep edge engagement so it moves with heat without popping out. Neutral-cure silicone only, never PVC against the polycarbonate. Same "glass floats on rubber" detail as §17.
• Multiwall mounts in base + cap profiles (glazing bars): UV side out (printed-film side), seal the flute ends with tape (solid on top, vented on the bottom), flutes run down-slope on a roof (10% minimum) or vertical on a wall for drainage, base profile screwed to the purlin near its middle, pre-drill oversized holes for thermal expansion (never pin it rigid or it oil-cans), EPDM-gasketed stainless screws, cap snaps on (PC) or screws down (aluminum). Peel the protective film immediately after install (sun bakes it on). Store under a non-PVC tarp, never step on the sheets.

Where to buy

• Exact 25mm 5-wall X opal: Duralight Plastics (listed price ≈ $7.64/sq ft), Sheet & Film, AmeriLux (bulk), Greenhouses-Etc.
• Cheaper 25mm 3-wall opal: Plastic Building Supplies ($5–6/sq ft), ePlastics, Lowe's (Polygal).
• Local Austin (skip the freight, call for a quote): Polymershapes Austin, Laird Plastics Austin, Regal Plastics.
• Cheap corrugated opal: Home Depot SUNTUF White Opal.

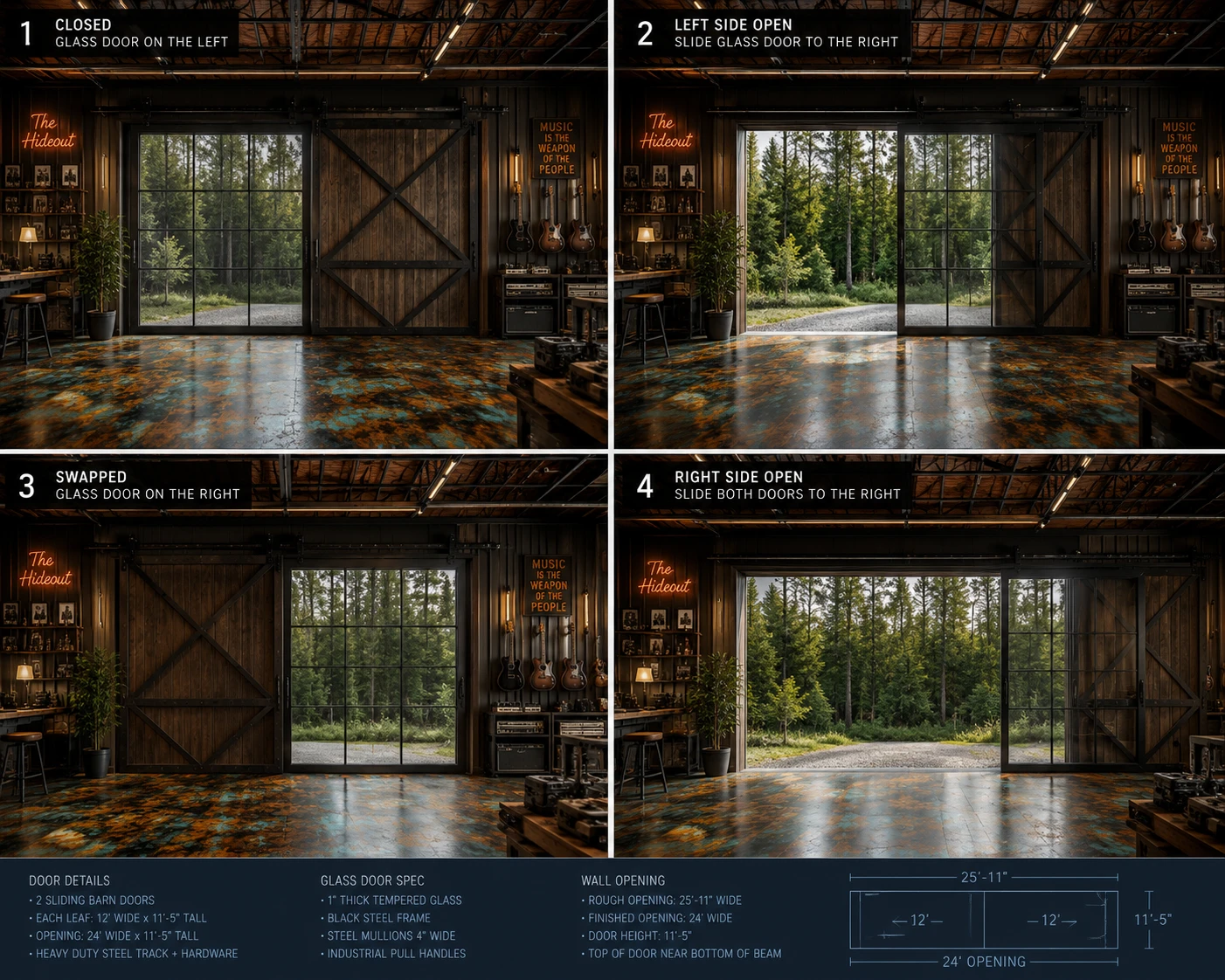

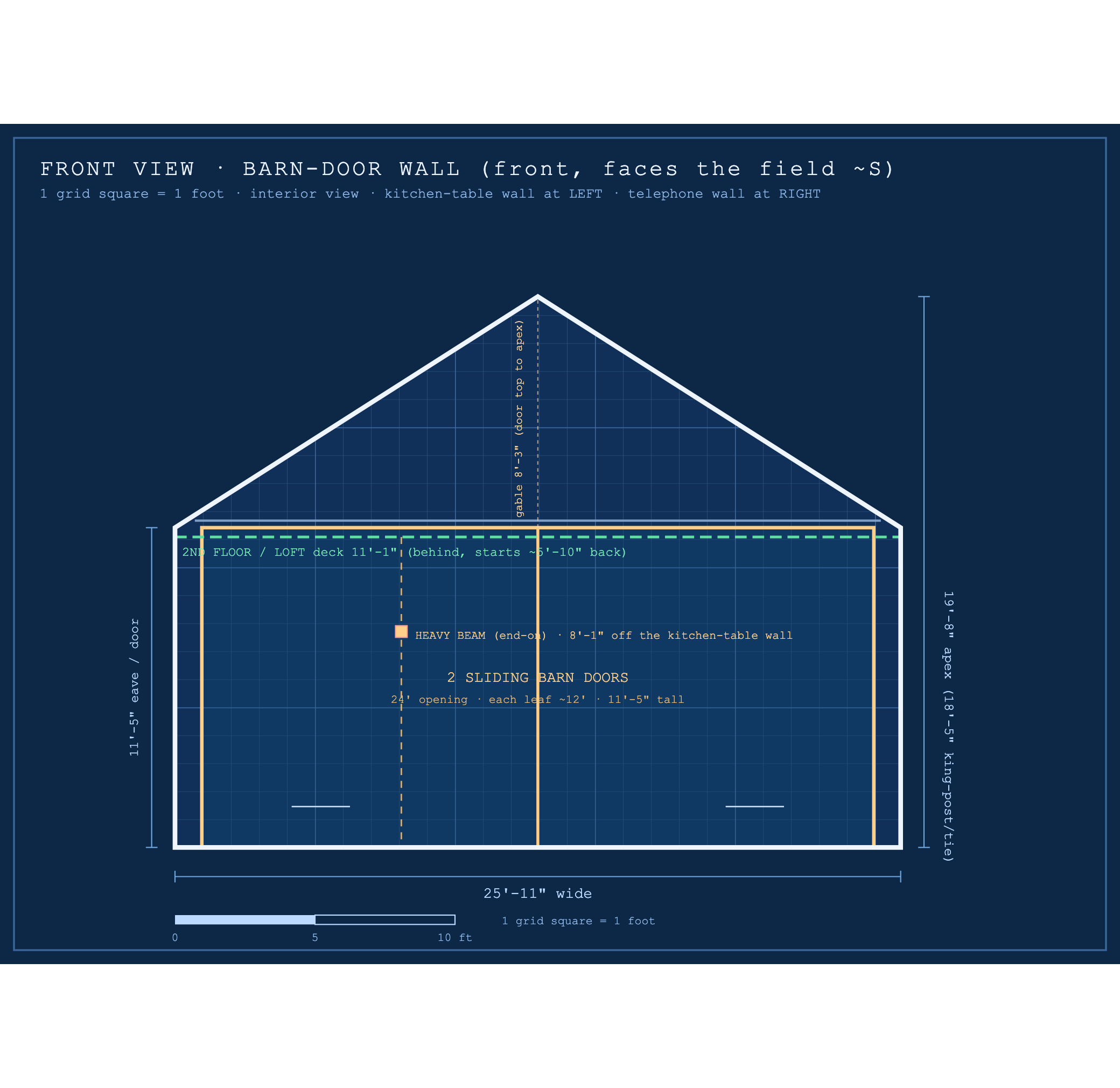

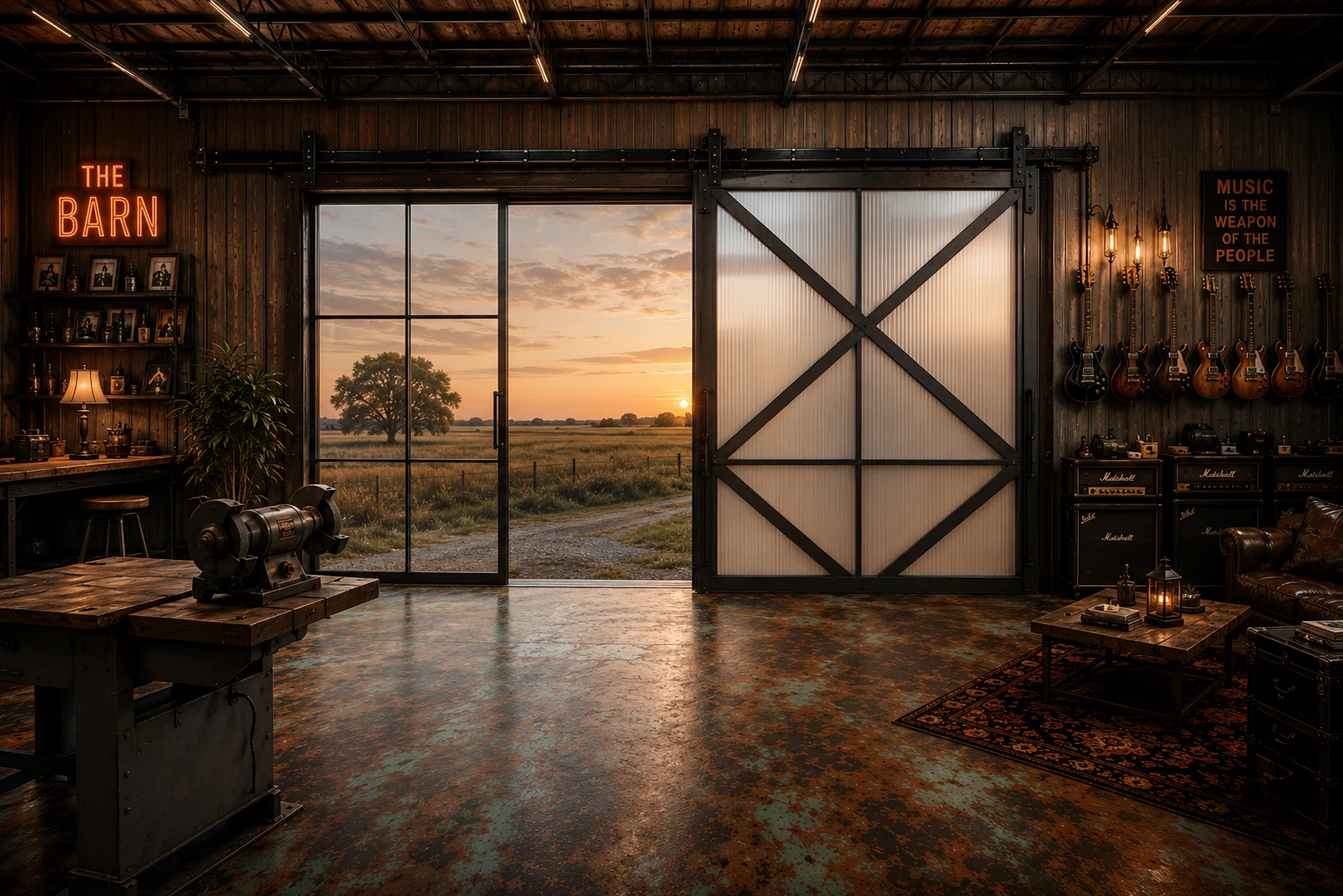

★Barn doors

The front of the barn is the showpiece: a 24-foot opening that closes up dark and private, or opens to the forest. The design is a fixed glass wall as the sealed envelope, with sliding wood barn doors over it as the privacy and blackout layer. Privacy when closed. Open air when you want it.

How it works (three layers)

1. Fixed glass wall (the left opening) is the real weather and sound envelope. A fixed wall seals far better than a sliding glass leaf and is easy to insulate.
2. The glass wall's own sliding glass doors open it up for open air when you want it.
3. Sliding wood barn doors ride an outer track as the privacy, blackout, and security layer. Slide them aside for light, close them for a dark, private room. The right barn door operates independently.

Why this over one big sliding glass door: a sliding glass leaf large enough to fill the opening is roughly 1,800 lbs of glass on the track and is hard to seal. The fixed-wall design takes the heavy glass off the slider, seals properly, and adds the blackout option. This is the studio-correct version. (Some early renders carried a "The Hideout" working name; the studio is The Barn.)

18Sound walls

Budget-serious wall (inside-out)

Stud wall
Mineral wool in cavity
5/8" Type X drywall
Green Glue damping compound
5/8" Type X drywall
All seams sealed with acoustical sealant

Stronger practical wall (adds a mounting layer)

Stud wall
Mineral wool in cavity
3/4" plywood
Green Glue damping compound
5/8" Type X drywall
All seams sealed

The plywood layer lets you screw panels, slats, diffusers, and hardware anywhere later without hunting for studs.

Best isolation (room within a room)

Outer barn structure / outer framed wall
Air gap
Separate inner wall frame (not hard-connected)
Mineral wool in cavities
Two layers of drywall on the room side
Green Glue between the drywall layers
Acoustic caulk around every seam, corner, outlet, penetration

★Floor isolation (the floated floor)

Keeping sound from traveling through the floor, the structure-borne path the dead walls do not catch. Treat this as design direction to confirm with a studio / acoustic builder, not a final spec.

The principle (what state-of-the-art studios do)

• Decouple the floor from the structure.
• Add mass on top.
• Keep the air gap controlled (the gap is the isolator).
• No rigid contact, no fasteners bridging the isolation layer.
• Seal the perimeter (open gap + acoustic caulk, never hard-packed).
• Stop the vibration paths so nothing short-circuits the float.

The ground-floor barn reality

The barn is slab-on-grade, so we are not mainly isolating downward into a room below, the ground is already a huge sink. The real concern is structure-borne vibration moving sideways through the slab between the live room and the control room (drums buzzing into the mix-position floor, the mics, the monitors).

The floated-floor stack (control room)

The loft is a different problem (wood-framed, sitting above the rooms below), so its floor gets a separate, budget DIY decoupled sandwich, see The Attic (2nd floor).

19Ceiling, floor, doors

Ceiling

• As tall as the barn allows. Control room min 9', ideal 10–12'. Live room: keep it tall.
• Treat the ceiling like a wall for isolation where there’s a room above (the loft): mass + decoupling + sealing.
• Deep absorption clouds (over the desk, over the singer) are treatment — added after construction.

Floor

• Concrete slab = good mass already. Build framed walls on a sill gasket / isolation tape to start decoupling. Floating floor only if budget + isolation needs justify it (see Floor isolation).
• No rattles, no hollow spots under the listening or mic positions.

Doors

• Doors are a top failure point. Do not cheap out.
• Heavy solid-core doors with full perimeter seals + automatic drop bottoms.
• For high isolation between loud rooms, plan two doors (a sound lock) where space allows.
• Seal the frame to the wall. A great wall with a rattly door is a bad wall.

20Acoustic treatment (per room)

Treatment goes in after walls are built and sealed — then you tune.

Control room

Your walls are open studs + mineral wool + fabric, so they already handle mid/high absorption and first reflections — no extra panels needed there. The one thing thin walls miss is deep bass, so the real work is corner trapping. Watch the opposite risk too: with absorptive walls everywhere, don't over-deaden — keep the floor hard, skip a full rug.

• Corners (the priority): full-height DIY Rockwool superchunk bass traps in all 4 vertical corners (spec below). This is the job the 3.5" walls can't do.
• Front + side walls: already absorptive (your wool walls) — leave them.
• Ceiling: a deep cloud over the desk if the ceiling is hard.
• Rear wall: deep trapping, or some diffusion to keep life. Symmetry: left = right.
• Rule: control bass first; don't deaden the highs any further — the room's already soft.

Vocal booth

Thick absorption, corner treatment, a soft ceiling cloud. Some adjustable/movable treatment so it isn’t lifeless. Avoid thin foam as the only solution.

Live room

Keep some life. Control only the harsh reflections. Movable panels / gobos to retune per session.

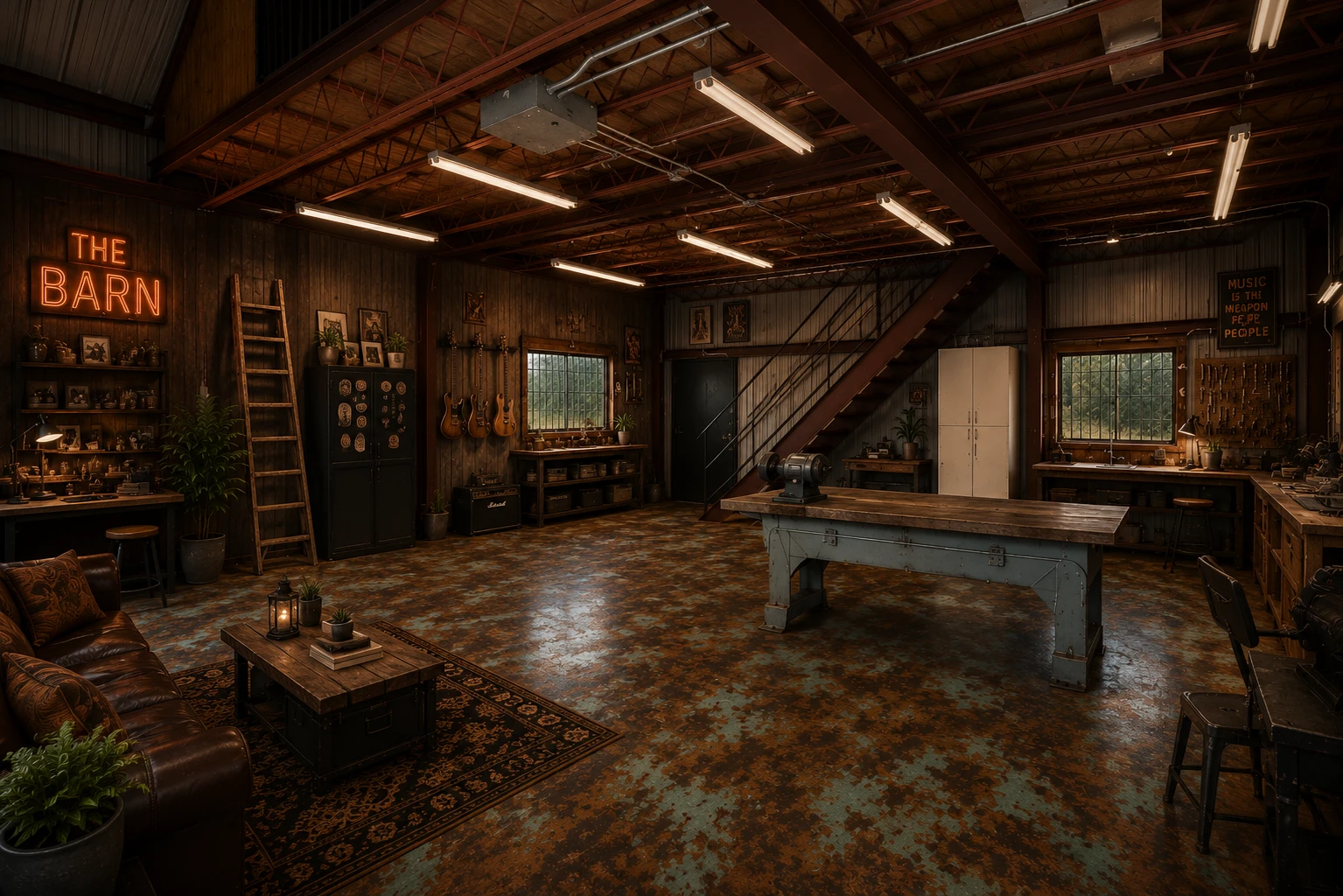

★Interior design

The vibe: future industrial speakeasy barn. A secret recording room under an old steel barn where the future is leaking through the rust. Not a nightclub, not a garage, not a white sci-fi box. Old console metal, oxidized copper, black steel, warm walnut, dim amber light, and a tiny bit of teal tech glow.

The direction, element by element

• Floor (the hero): oxidized copper / rust / turquoise patina on stained concrete under a satin clear coat. Aged metal under glass. The whole room builds out from this. Rugs as islands where acoustics need them.
• Walls: deep warm charcoal-black. The front wall behind the monitors darker still so the speakers visually disappear. Selected zones in walnut slats + fabric panels. No bright white drywall.
• Wood: warm walnut acoustic slats and wood clouds soften the black walls. Enough warmth that the room is not cold or goth.
• Trim: black steel or dark bronze. Clean, industrial, premium. Ties the barn steel, the studio glass, and the patina floor together.
• Ceiling: keep the barn structure visible, beams darkened. Acoustic clouds between the beams wrapped in charcoal / rust / tobacco fabric, never basic gray.
• Lighting: warm amber indirect, dimmable, soft under-cloud glow. Pin spots on the guitars, amps, and gear. A subtle teal accent only in tiny controlled moments. No shop lights, no neon nightclub.
• Furniture: low, heavy, worn. Distressed brown leather Chesterfield, tobacco / cognac / oxblood leather, blackened-steel + reclaimed-wood tables, factory carts, Persian rugs in rust / black / faded gold / muted teal.
• Metal: blackened steel, oil-rubbed bronze, aged brass, oxidized copper. Everything aged or oxidized, no shiny chrome or stainless.

Other looks on the table

The dark speakeasy above is the lead direction. But there is a strong warm "Warm Modern Mid-Century" alternative on the table: the same raw barn shell, but brighter and more welcoming. Warm reclaimed wood, cognac leather, brass and bronze, amber light, the patina floor. It reads more like a creative space and retail front than a dark hideout. This is the "competition look" for the ground floor, the warm parallel to The Attic upstairs. Not locked, the warm-vs-dark call is still open.

Avoid: bright white walls, clean gray office paint, shiny chrome, the cheap black-and-red "studio" look, too much blue (the floor already carries the electric turquoise). Full direction + per-room image prompts: BARN_INTERIOR_DESIGN.md.

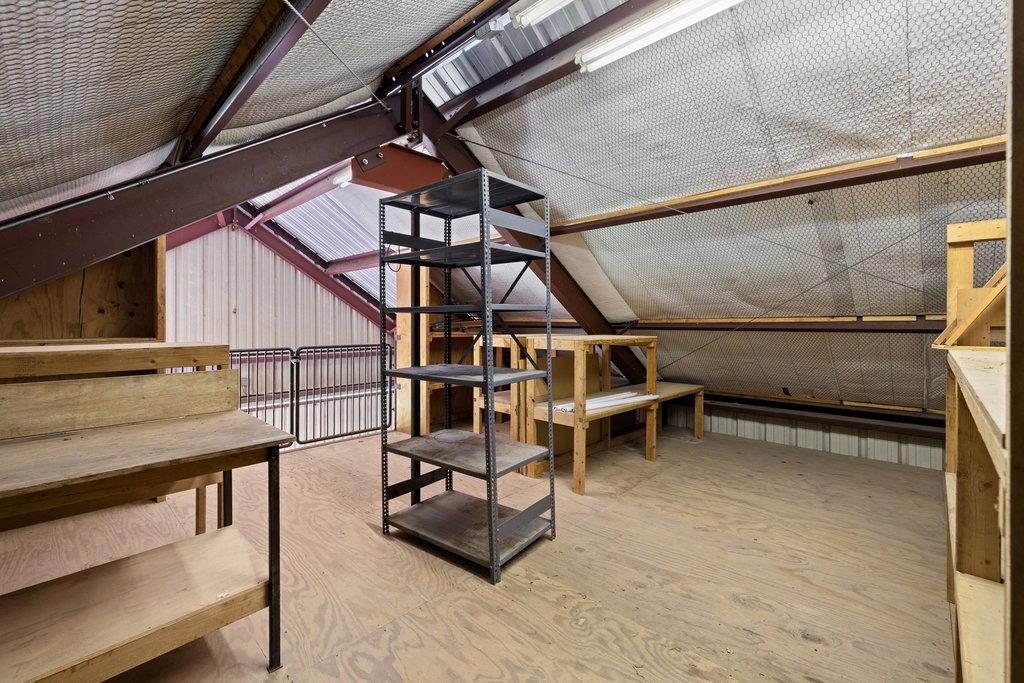

★The Attic (2nd floor)

The upstairs creative layer: "The Attic at the Barn," a writer's layer + creative school (lessons, writing, mentorship, workshops). Warm Modern Mid-Century. Full brand + interior brief: THE_ATTIC_DESIGN.md. The detailed cork build (color sourcing, the soundproof sandwich, how cork is made) lives in §13 Floor 2; the skylight spec is in Polycarbonate glazing.

Getting the look: swirly cork

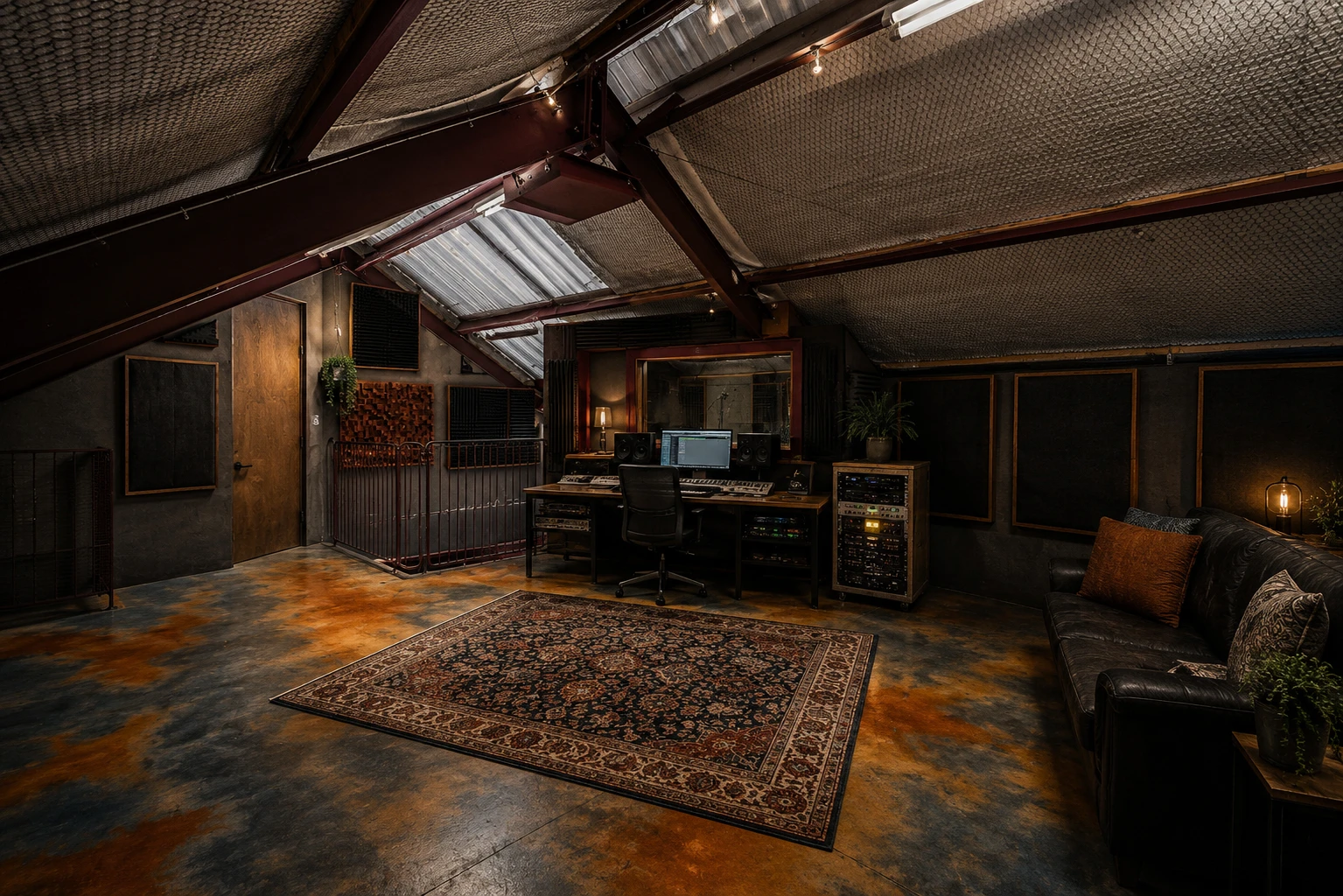

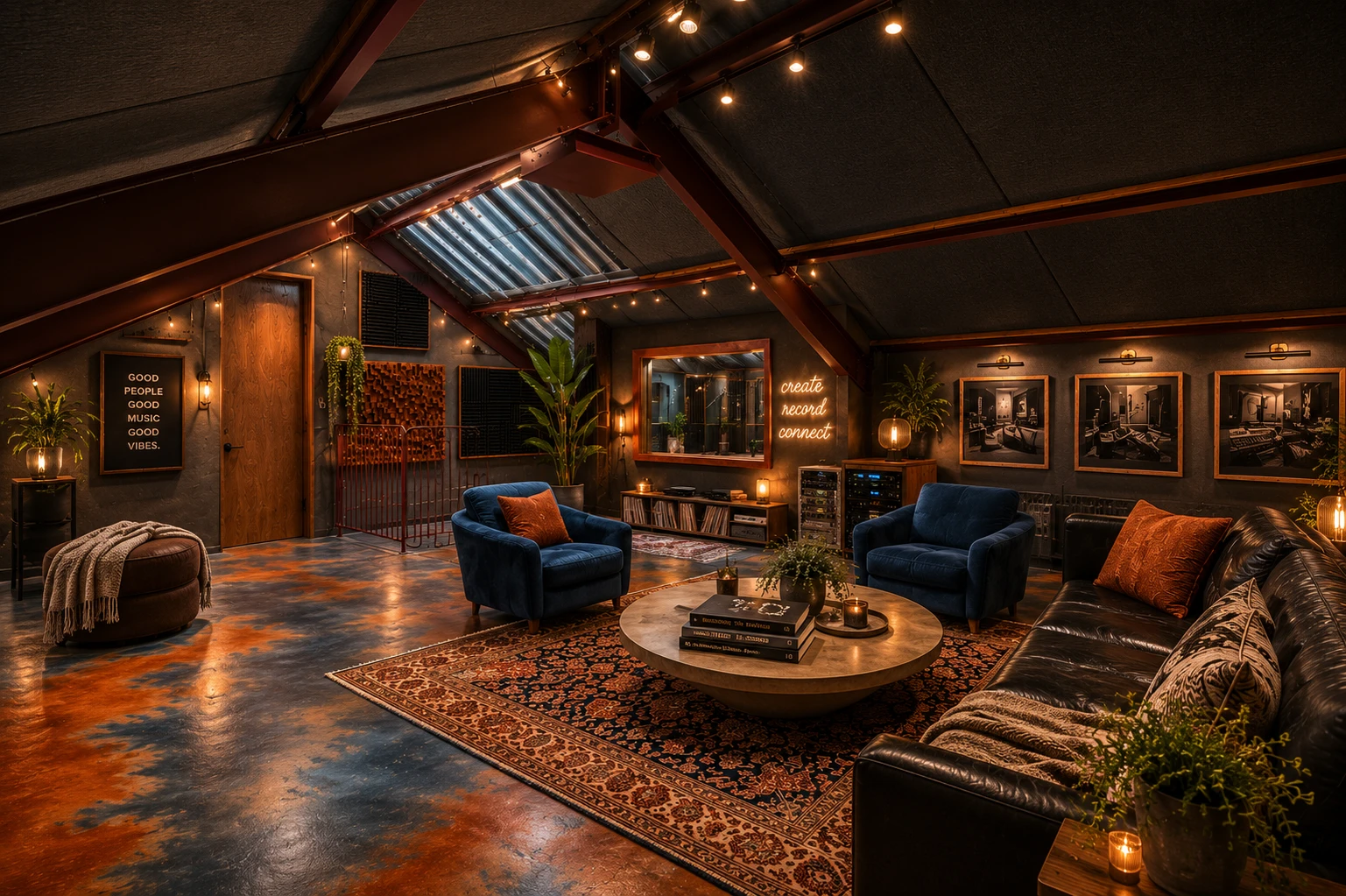

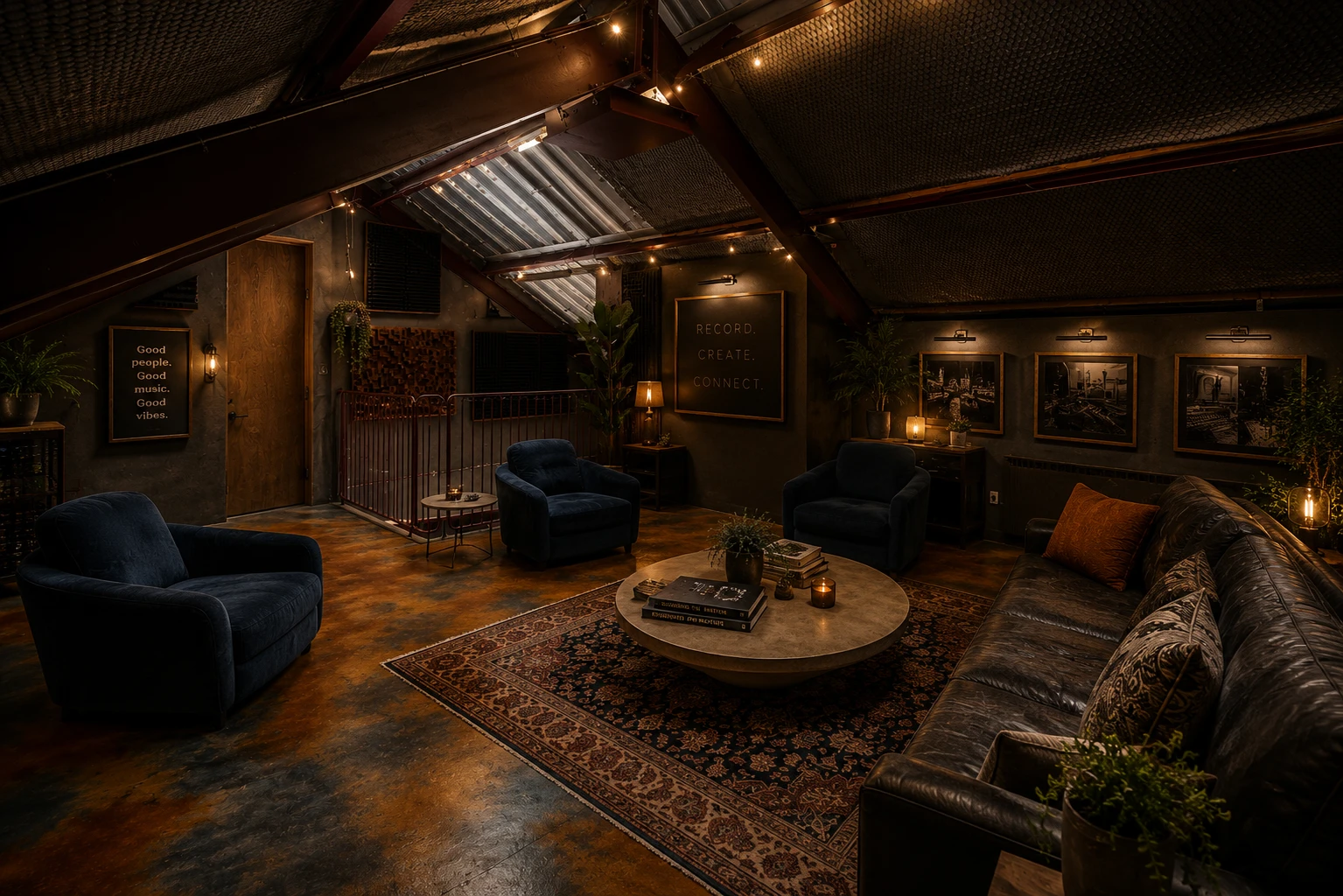

The loft, explored dark

The locked direction is the warm Modern Mid-Century above. These earlier renders show the loft going moody, a control-room-in-the-loft, if it ever wants to: same patina floor, leather, navy chairs, the skylight in the ridge. Kept as the dark alternative.

The loft floor: budget isolation stack

The loft is wood-framed and sits over the rooms below, so it gets a budget DIY decoupled sandwich, mass + damping + a soft break + sealed gaps + rugs. Not springs, not concrete.

If sound leaking down ever becomes a real problem, the better fix is from underneath: Rockwool in the cavity, resilient / hat channel, 5/8" drywall, Green Glue, a second 5/8" drywall, sealed perimeter. That does more than overbuilding the walking surface.

Budget vs pro: what the upstairs floor costs

Same swirly cork on top either way. The difference is how much isolation you build underneath, and what it costs. Rough mid-2026 Central-TX materials for a ~550 sq ft loft. Every price is an estimate, VERIFY locally.

21Materials list

Structure / isolation

• 2×4 / 2×6 framing lumber; double-stud where isolation matters most
• Staggered studs OR isolation clips + hat channel where budget/space is tight
• Mineral wool (Rockwool Safe’n’Sound, Comfortbatt, or equiv.)
• 5/8" Type X drywall (double layer); 3/4" plywood (mounting-layer variant)
• Green Glue Compound (between drywall) + Green Glue Sealant/acoustical caulk (seal everything)
• Backer rod for large gaps; putty pads for electrical boxes; rubber sill gasket under framing

Doors + windows

• Heavy solid-core doors + full perimeter seals + automatic drop bottoms
• Laminated glass (1/4" control side, 3/8"–1/2" booth side); neoprene/EPDM blocks, gasket tape, removable stops

Acoustic treatment

• Corner bass traps (full-height); broadband panels (703-type rigid board); ceiling cloud panels
• Diffusion / slat panels (hybrid); movable gobos; breathable acoustic fabric; rugs

Airflow / HVAC

• Oversized ducting; lined silencer/muffler boxes; flex duct for bends
• Mini-split or low-velocity system sized for heat load (verify with HVAC pro)

22What NOT to do

23What to tell the builder

Copy-paste this to a GC / framer:

We are building a serious mastering-style control room first.
The finished inside target is 13'7" W x 17'8" L x 9'6" H (the locked control-room size from §6, fit to the
measured shell — ceiling height is capped by a loft + an off-center beam).
Speakers go on the short wall and fire down the long dimension.
The room must be symmetrical, heavy, airtight, and decoupled from the
barn shell as much as budget allows.
We want free-standing swappable monitors, not soffit holes yet.
HVAC must be planned before framing: quiet supply, quiet return,
no straight-through vents.
The vocal booth is a widening non-square room with a short window wall,
angled side walls, and a deeply treated rear wall behind the singer.
All doors, windows, vents, outlets, and seams must be sealed.
Nothing can rattle.

Reminder: working design package, not a final engineered set. Final dimensions, structure, electrical, HVAC, doors, windows, and code get checked on-site by qualified builders, an HVAC pro, and where needed an acoustician.

24Accessories (in the 3D walkthrough)

Four add-ons modeled into the walkthrough — not core studio gear, but the upgrades that turn The Barn into a destination. Each is sized to a real, buyable product. Walk them in the 3D model; you can shift+drag the stove and airstream to reposition them.

25Still open / to verify

26Sources — videos studied

The videos studied frame-by-frame to build this manual. Watch them for the full picture.

27Bonus: the Jeep (not a barn thing, just cool)

Pulled up next to the hot tubs in the 3D model. Has nothing to do with the studio. Parked here anyway, in case something needs fixing out at the property.
